Hyundai Elantra (CN7): Trunk Lid / Trunk Lid Assembly

Components and components location

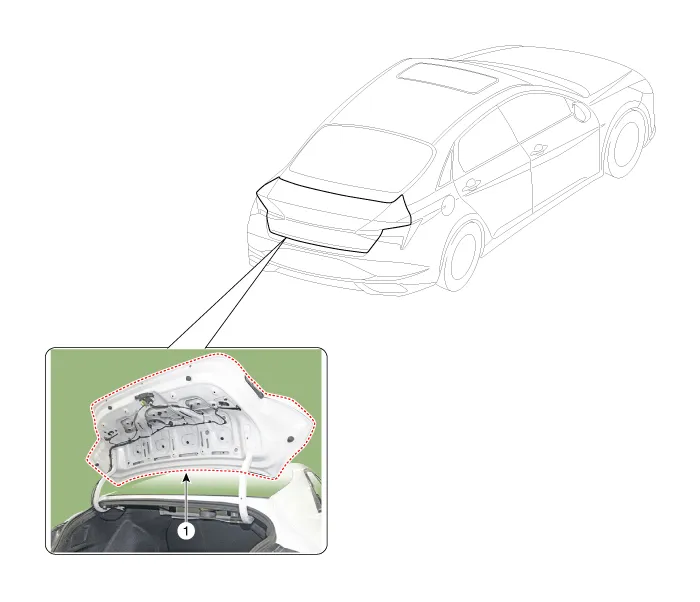

Component Location

1. Trunk lid assembly


Repair procedures

Replacement

•
When removing and installing the trunk lid, an assistant is necessary.

•
Be careful not to damage the trunk lid and body surface.
1.
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim")
2.

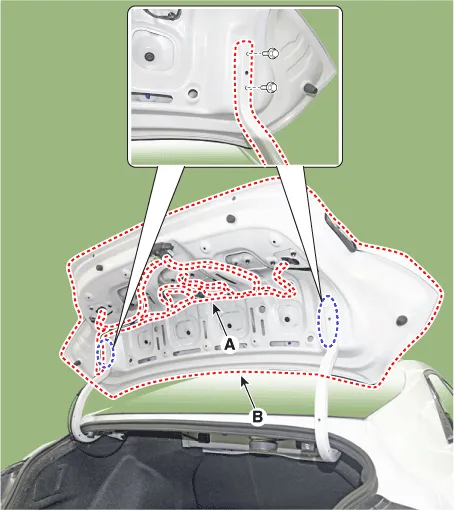

Disconnect the connectors and trunk lid wiring harness (A).
3.
After loosening the mounting bolts, remove the trunk lid assembly (B).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.
To install, reverse the removal procedure.

•
Make sure the trunk lid locks / unlocks and opens / closes properly.
•
Adjust the trunk lid as necessary.
•
Make sure the connectors are connected in properly.
•
Replace any damaged clips.

    Adjustment1.Place the car on a flat surface and check whether the body and trunk lid are well - aligned.2.After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side.

    Components and components location Component Location 1. Trunk lid trim Repair procedures Replacement    â€¢ When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
