Hyundai Elantra (CN7): Trunk Lid / Repair procedures
| Adjustment |
| 1. | Place the car on a flat surface and check whether the body and trunk lid are well - aligned. |

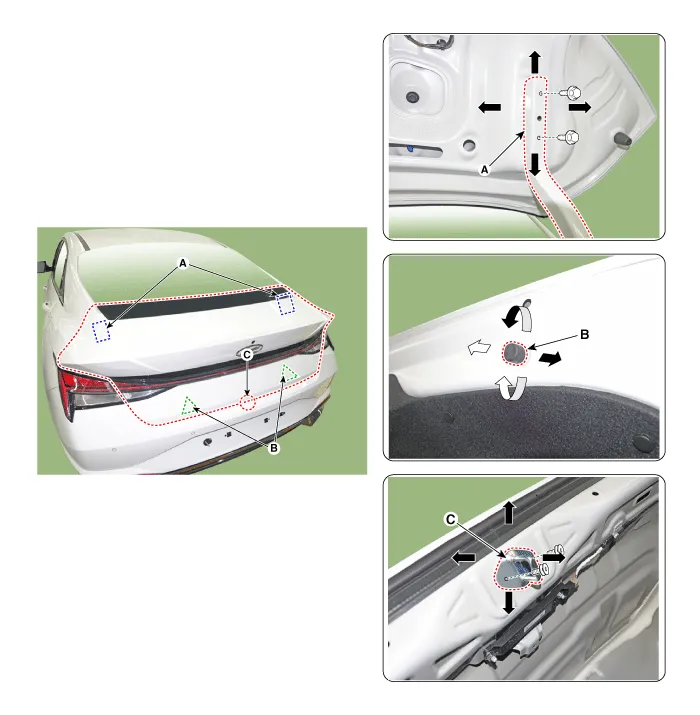

| 2. | After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side. |
| 3. | Adjust the gap between the trunk lid and body by turning the trunk lid overslam bumpers (B). |
| 4. | After loosening the trunk lid striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts. |
| 5. | Make sure the trunk lid opens or closes properly.
|
Components and components location Component Location 1. Trunk lid assembly Repair procedures Replacement • When removing and installing the trunk lid, an assistant is necessary.
