Hyundai Elantra: Auto Hold / Warning messages

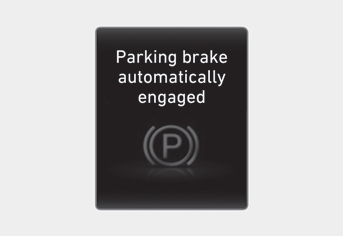

Parking brake automatically engaged
.png)
When the EPB is applied from Auto Hold, a warning will sound and a message will appear.

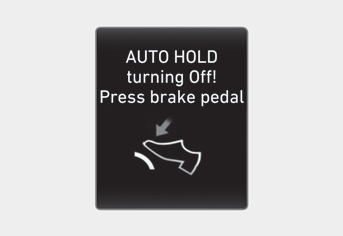

AUTO HOLD turning Off! Press brake pedal
.png)
When the conversion from Auto Hold to EPB is not working properly a warning will sound and a message will appear.
When this message is displayed, the Auto Hold and EPB may not operate. For your safety, depress the brake pedal.

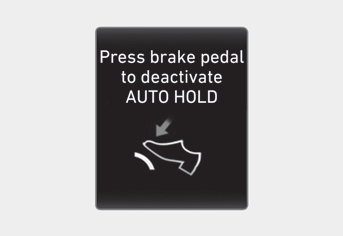

Press brake pedal to deactivate AUTO HOLD
.png)
If you did not apply the brake pedal when you release the Auto Hold by pressing the [AUTO HOLD] switch, a warning will sound and a message will appear.
AUTO HOLD conditions not met. Close door, hood and trunk
.png)
When you press the [AUTO HOLD] switch, if the driver's door and engine hood are not closed, a warning will sound and a message will appear on the cluster LCD display.
Press the [AUTO HOLD] switch after closing the driver's door and hood.
