Hyundai Elantra: Convenient Features / Wireless Cellular Phone Charging System

Hyundai Elantra (CN7) 2021-2024 Owner's Manual / Convenient Features / Wireless Cellular Phone Charging System

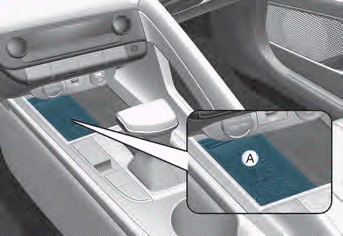

[A] : Charging pad

There is a wireless cellular phone charger inside the front console.

The system is available when all doors are closed, and when the ignition switch is in the ACC/ON position.

To charge a cellular phone

The wireless cellular phone charging system charges only the Qi-enabled cellular phones. Read the label on the cellular phone accessory cover or visit your cellular phone manufacturer’s website to check whether your cellular phone supports the Qi technology. The wireless charging process starts when you put a Qi-enabled cellular phone on the wireless charging unit.

1. Remove other items, including the smart key, from the wireless charging unit. If not, the wireless charging process may be interrupted. Place the cellular phone on the center of the charging pad ().

2. When charging starts, a charging icon is displayed on the infotainment system screen. However, depending on the infotainment system screen, the wireless charging icon may not be displayed. See the infotainment web manual for details.

3. You can turn ON or OFF the wireless charging function in the user settings mode on the instrument cluster. For further information, refer to the “LCD Display Modes” in this chapter.

The system warns you with a message on the LCD display if the cellular phone is still on the wireless charging unit after the engine is turned OFF and the front door is opened.


For some manufacturers’ cellular phones, the system may not warn you even though the cellular phone is left on the wireless charging unit. This is due to the particular characteristic of the cellular phone and not a malfunction of the wireless charging.


  • The wireless cellular phone charging system may not support certain cellular phones, which are not verified for the Qi specification ().
  • When placing your cellular phone on the charging mat, position the phone in the middle of the mat for optimal charging performance. If your cellular phone is off to the side, the charging rate may be less and in some cases the cellular phone may experience higher heat conduction.
  • In some cases, the wireless charging may stop temporarily when the Remote Key or Smart Key is used, either when starting the vehicle or locking/unlocking the doors, etc.
  • The wireless charging process may temporarily stop, when temperature abnormally increases inside the wireless cellular phone charging system. Stop the charging cellular phone and wait until temperature falls to a certain level.
  • The wireless charging process may temporarily stop when there is any metallic item, such as a coin, between the wireless cellular phone charging system and the cellular phone.
  • When charging some cellular phones with a self-protection feature, the wireless charging speed may decrease and the wireless charging may stop.
  • If the cellular phone has a thick cover, the wireless charging may not be possible.
  • If the cellular phone is not completely contacting the charging pad, wireless charging may not operate properly.
  • Some magnetic items like credit cards, phone cards or rail tickets may be damaged if left with the cellular phone during the charging process.
  • When any cellular phone without a wireless charging function or a metallic object is placed on the charging pad, a small noise may sound. This small sound is due to the vehicle discerning compatibility of the object placed on the charging pad. It does not affect your vehicle or the cellular phone in any way.


If the ignition switch is in the LOCK/ OFF position, the charging also stops.


This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.
