Hyundai Elantra: Manual heating and air conditioning / Air conditioning & OFF mode

Air conditioning

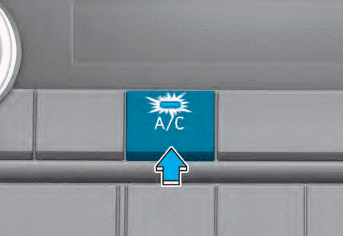

Push the A/C button to manually turn the air conditioning system on (indicator light will illuminate).

Push the button again to turn the air conditioning system off.

OFF mode

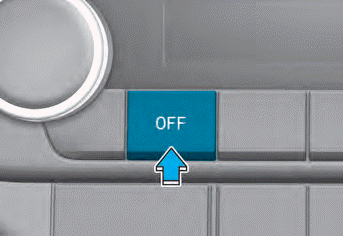

Push the OFF button of the front to turn off the air climate control system. However, you can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.

    Fan speed control

    The fan speed can be set to the desired speed by using the fan speed control toggle switch. More air is delivered with higher fan speeds. Pressing the OFF button turns off the fan...

    System operation

    Ventilation 1. Select the Face Level mode. 2. Set the air intake control to fresh mode. 3. Set the temperature control to the desired position. 4. Set the fan speed control to the desired speed...
