Components and components location

Components

1. Engagement bearing sleeve
2. Clutch engagement fork
3. Engagement bearing 1 (Odd)
4. Engagement bearing 2 (Even)

5. Dual clutch assembly
6. Snap ring
7. Spline hub
8. Retaining ring

Repair procedures

Removal

1.	Remove the dual clutch transmission from the vehicle. (Refer to DCT System - "DCT)

2.	Remove the dual clutch assembly. (Refer to Dual Clutch System - "Double Clutch Assembly")

3.	Remove the clutch engagement bearing 2 (A) and 1 (B).

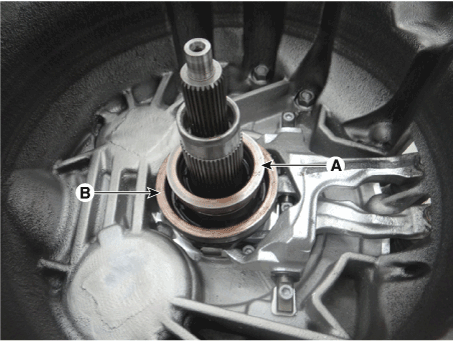

4.	Remove the clutch engagement fork (A) and engagement bearing sleeve (B).

Installation

•

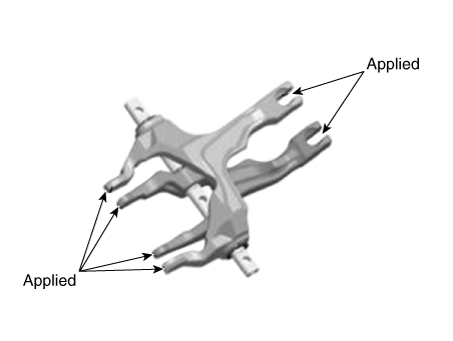

Apply coat of grease when installing the clutch fork.

Spec grease : CASMOLY 9508

Amount : 0.2g

Install the clutch engagement fork (A) and engagement bearing sleeve (B).

Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

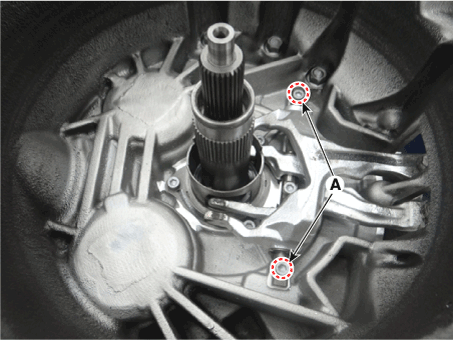

•	Check dowel pins (A-2ea) when installing the fork assembly. Replace the dowel pin with new part if it is damaged or deformed.

•	Take caution of the direction of fork assembly shaft when installing.

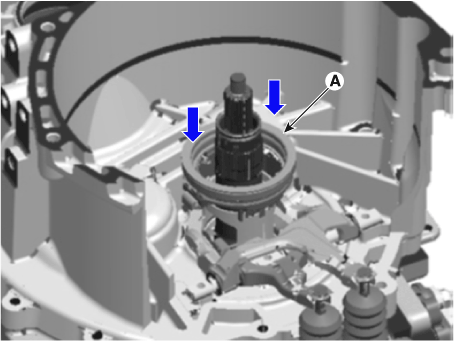

Install the engagement bearing 1 (A).

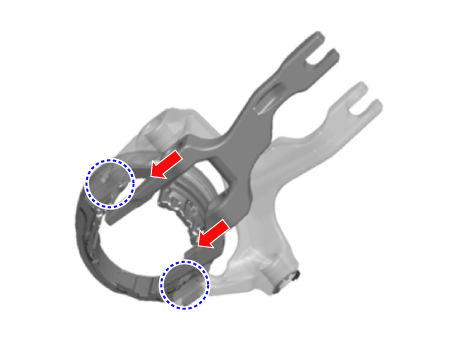

•	Align the fork with the bearing plastic guide direction.

Install the engagement bearing 2 (A).

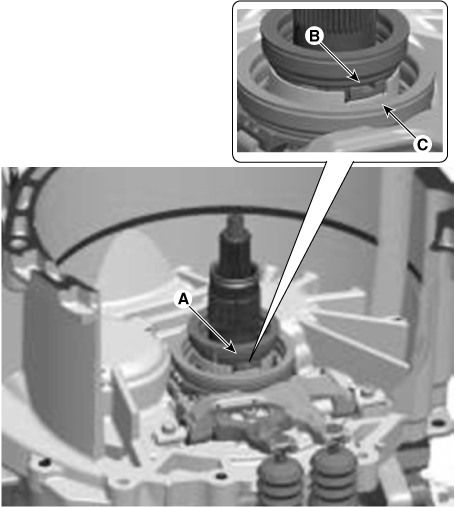

•	Take caution and make sure that the bearing plastic stopper (B) is settled in the sleeve (C).

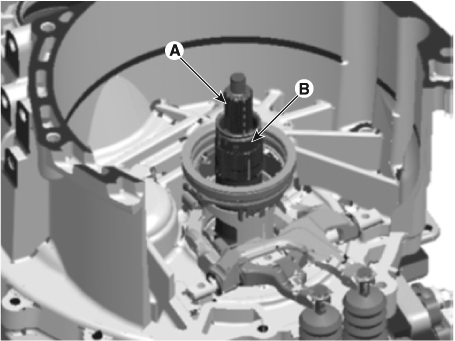

•	Apply coat of spec grease on the 1st input shaft spline (A) after installing the bearing.

•

Apply proper amount of transmission oil on the 2nd input shaft spline (B).

(Be careful not to get oil on the spline when applying coat of oil.)

Spec grease : CASMOLY 9508

Amount : 0.15 - 0.25g

Dual Clutch Assembly
