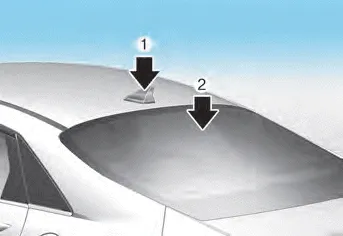

Shark fin antenna (1)
The shark fin antenna receives data transmitted from base stations and satelliltes (for example: GPS, Sirus XM, LTE) and also transmits to base stations (for example: LTE).
Glass antenna (2)
Your vehicle uses a glass antenna to receive both AM and FM signals.
