Hyundai Elantra (CN7): Exhaust Emission Control System / Catalytic Converter
Description and operation

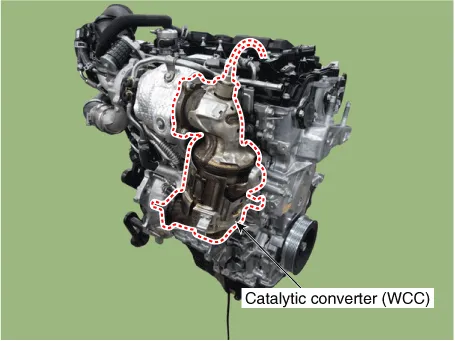

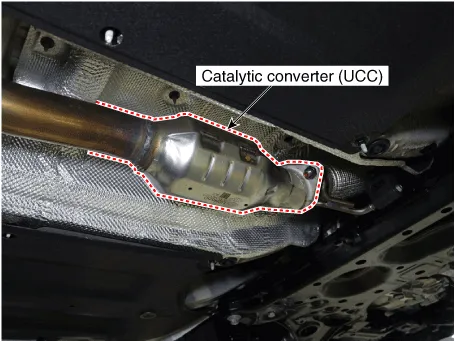

| Description |
Repair procedures
| Removal |
| 1. | Remove the exhaust manifold. (Refer to Engine Mechanical System - "Exhaust Manifold") |
| 1. | Remove the Center Muffler. (Refer to Engine Mechanical System - "Center Muffler") |
| Installation |
| 1. | Install in the reverse order of removal. |
DescriptionExhaust emissions (CO, HC, NOx) are controlled by a combination of engine modifications and the addition of special control components.Modifications to the combustion chamber, intake manifold, camshaft and ignition system form the basic control system.
Description and operation DescriptionContinuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
Other information:
Hyundai Elantra (CN7) 2021-2026 Service Manual: Mode Control Actuator
Description and operation DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Hyundai Elantra (CN7) 2021-2026 Service Manual: Blower Resistor (Manual)
Repair procedures Inspection1.Measure the resistance between the terminals.2.The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)Replacement1.Disconnect the negative (-) battery terminal.
