Hyundai Elantra (CN7): Front Suspension System / Components and components location

Hyundai Elantra (CN7) 2021-2026 Service Manual / Suspension System / Front Suspension System / Components and components location

Components

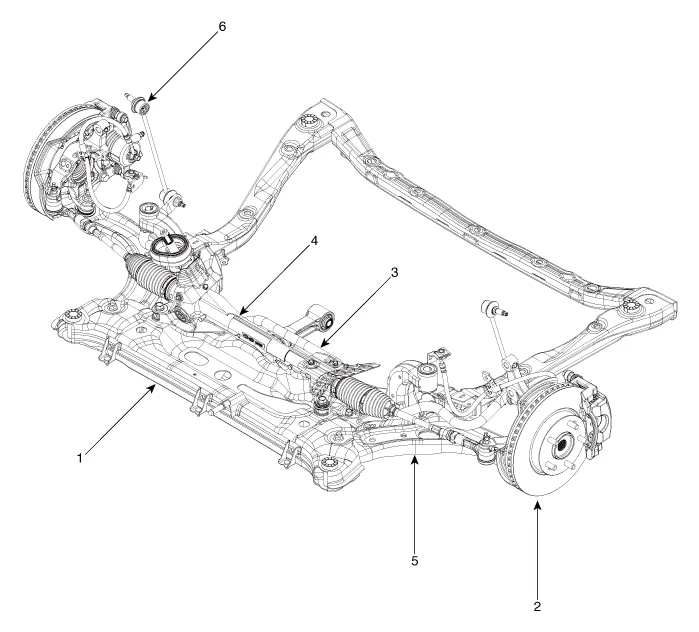

[A type]

1. Front sub frame
2. Front axle
3. Front stabilizer bar
4. Steering gearbox
5. Front lower arm
6. Front stabilizer bar link

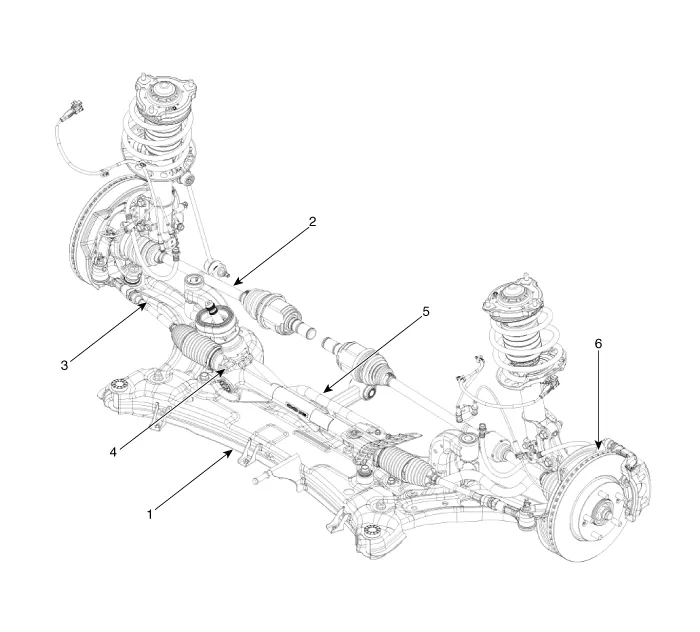

[B type]

1. Sub frame
2. Drive shaft
3. Lower arm
4. Steering gearbox
5. Stabilizer bar
6. Front axle assembly

    Components and components location Components 1. Insulator cap2. Lock nut3. Insulator & sturt bearing4. Bumper rubber5. Dust cover6. Coil spring7.
