Hyundai Elantra (CN7): Multifunction Switch / Components and components location
| Component |

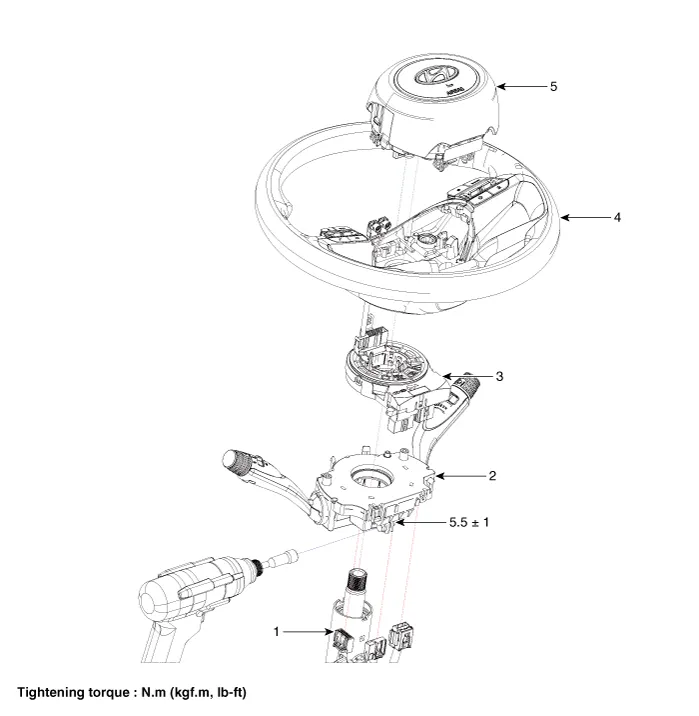

| 1. Steering column 2. Multifunction switch 3. Clock spring | 4. Steering wheel 5. Driver airbag module (DAB) |
Specifications Items Specifications Rated voltageDC 12VOperating temperature range-40 to +176°F (-40°C to +80°C)Quantity of standard loadWasherRelated current : 7ABlucking current : 15AInrush current : 20A
