Hyundai Elantra (CN7): Smart Key System / Components and components location

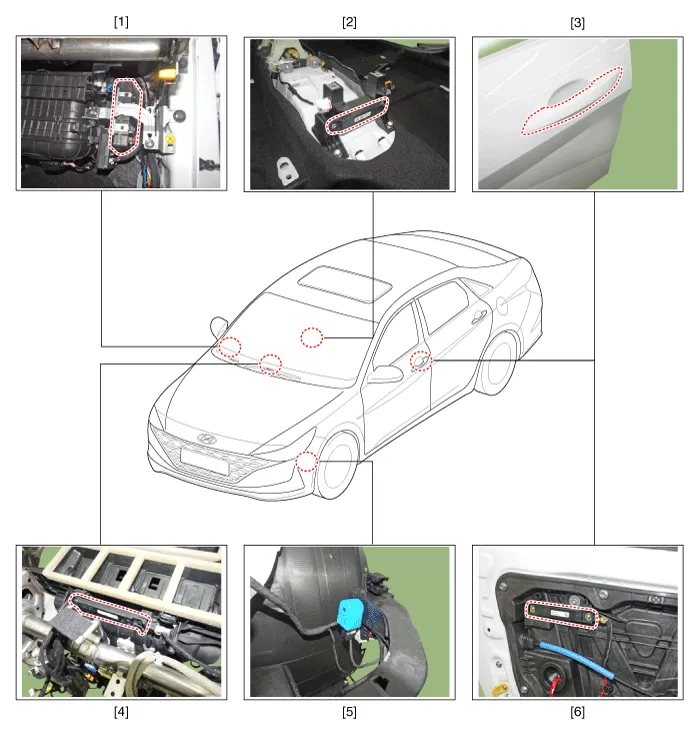

| Component Location (1) |
| 1. Smart key unit (IBU) 2. Interior antenna 2 3. Door outside handle | 4. Interior antenna 1 5. Buzzer |

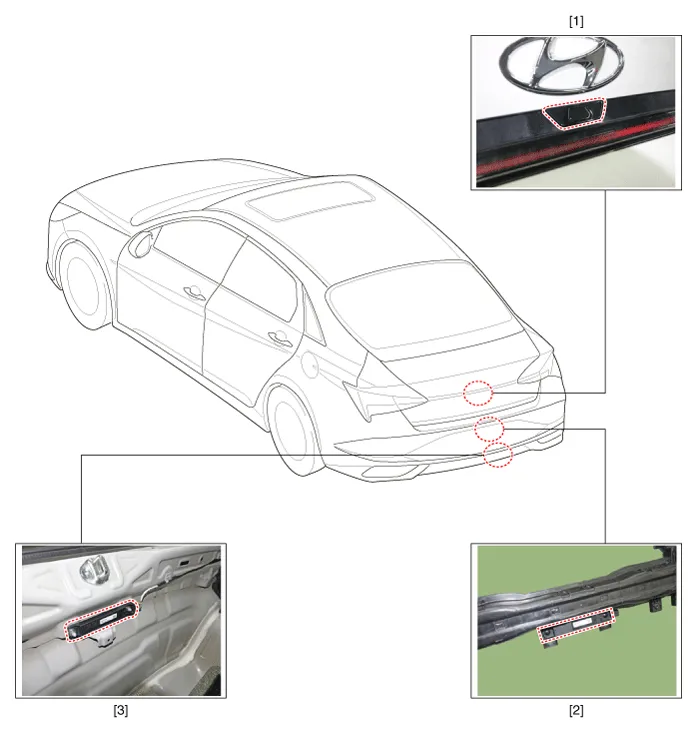

| Component Location (2) |
| 1. Trunk open switch 2. Bumper antenna | 3. Trunk atenna |
DescriptionThe SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed.
SpecificationsSmart Key Unit Items Specification Rated voltageDC 12VOperating voltageDC 9 - 16VOperating temperature-22°F to 167°F (-30°C to 75°C)LoadMax.
