Hyundai Elantra (CN7): Body (Interior and Exterior) / Fender

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Fender

Components and components location

Component Location

1. Fender assembly

Repair procedures

Replacement

•	When removing the fender, wrap protective tape around a screwdriver or remover not to damage components

•	Put on gloves to prevent hand injuries

1.	Remove the front bumper. (Refer to Front Bumper - "Front Bumper Assembly")

2.	Remove the head lamps. (Refer to Body Electrical System - "Head Lamps")

3.	Remove the front wheel guard. (Refer to Body Side Molding - "Front Wheel Guard")

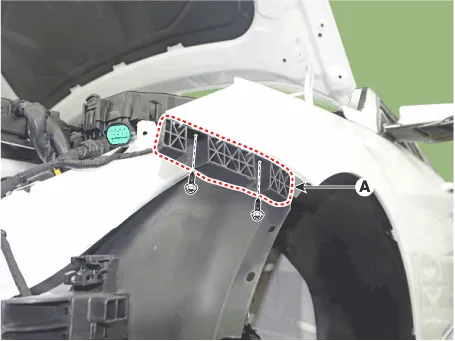

4.	Remove the front bumper side mounthing bracket (A) after loosening the bolts.

5.	Loosen the mounting clips and remove the insulator cover (A).

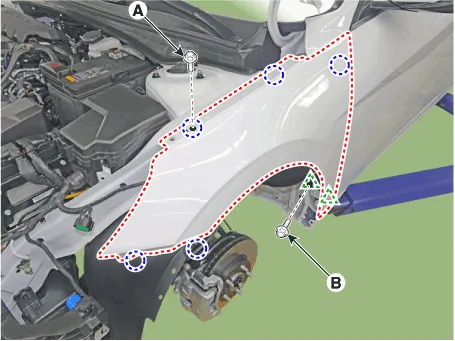

After loosening the mounting bolts, remove the fender assembly.

Tightening torque :

Bolt A : 7.8 - 18.6 N.m (0.8 - 1.9 kgf.m, 5.8 - 13.7 lb-ft)

Bolt B : 4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
