Hyundai Elantra (CN7): Rear View Monitor (RVM) / Function operation

Rear view

Operating conditions

• Shift the gear to R (Reverse), the image will appear on the screen.

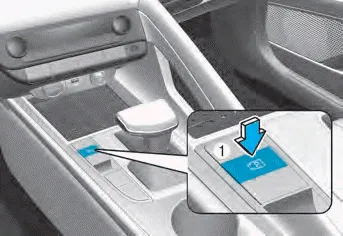

• Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen. However, parking guidance is not displayed.

Off conditions

• The rear view cannot be turned off when the gear is in R (Reverse).
• Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
• Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

Maintaining rear view

The rear view will maintain showing on the screen to help you when parking. However, parking guidance is not displayed.

Operating conditions

Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.

Off conditions

• When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.
• Shift the gear to P (Park), the rear view will turn off.

Driving rear view

The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.

Operating conditions

Press the Parking/View button (1) while the gear is in D (Drive) or N (Neutral), the driving rear view will appear on the screen.

Off conditions

• Press the Parking/View button (1) again, the driving rear view will turn off.

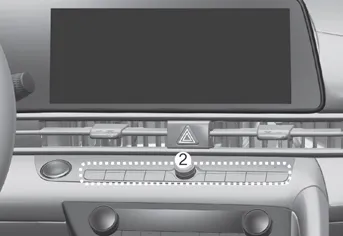

• Press one of the infotainment system button (2), the driving rear view will turn off.
• Shift the gear to P (Park), the driving rear view will turn off.

When operating

• If the gear is shifted to R (Reverse), while Driving rear view is displayed on the screen, the screen will change to rear view with parking guidance.
• When Driving rear view is displayed on the screen, an icon ( ) will appear on the upper right side of the screen indicating that the rear view is being displayed.

Rear top view

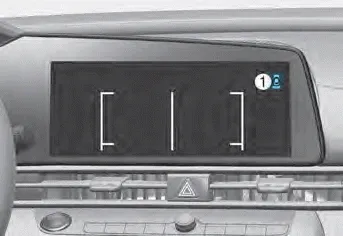

When you touch the icon (1), the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
