Hyundai Elantra (CN7): Head Lamp Leveling Device / Head Lamp Leveling Switch

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Head Lamp Leveling Device / Head Lamp Leveling Switch

Schematic diagrams

Schematic Diagrams

Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel (A).
(Refer to Body - "Crash Pad Lower Panel")
3.

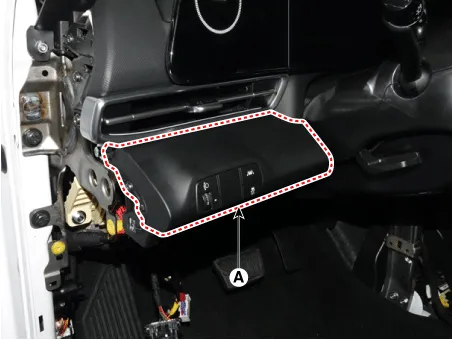

Loosen the mounting screw and remove the crash pad lower switch (A).

4.

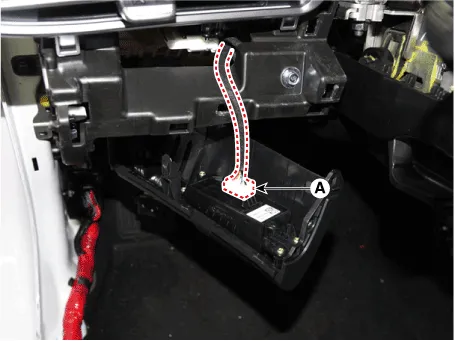

Disconnect the crash pad lower switch connector (A).

5.
To install, reverse the removal procedure.

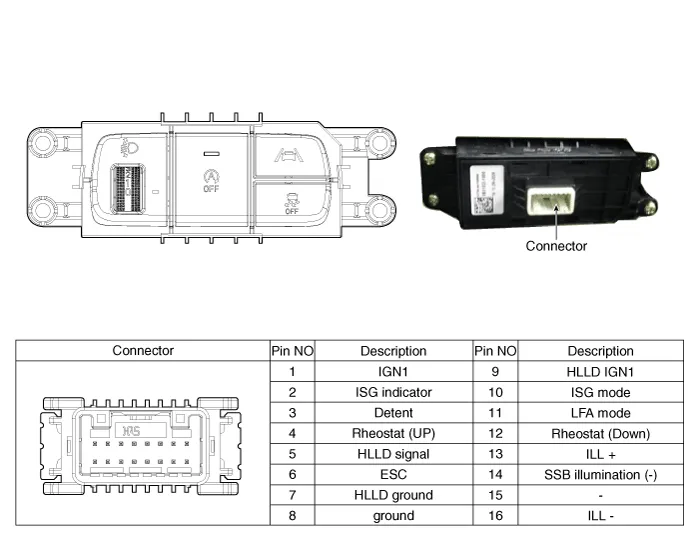

    Component Location1. Head lamp leveling actuator2. Head lamp leveling switch
