Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.

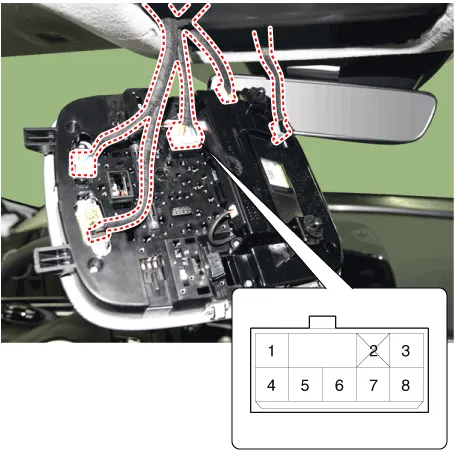

Using a remover and remove the overhead console (A).

3.

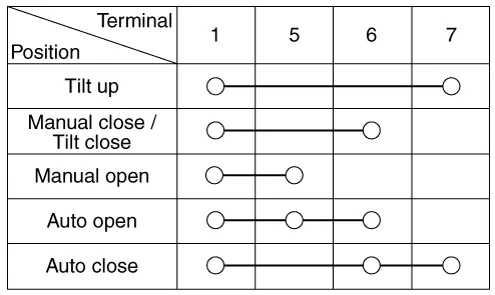

Check for continuity between the terminals.

    Circuit Diagram

    Repair procedures Inspection 1.Disconnect the negative (-) battery terminal.2.Remove the roof trim.(Refer to Body - "Roof Trim")3.Disconnect the sunroof motor (A) connector.
