Hyundai Elantra (CN7): Sun Roof / Schematic diagrams

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Sun Roof / Schematic diagrams

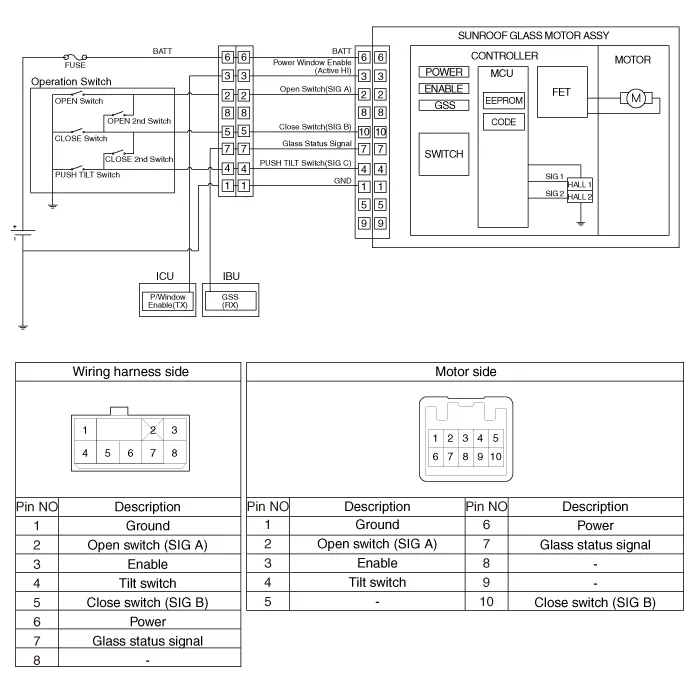

Circuit Diagram

    Component Location1. Sunroof2. Sunroof switch3. Sunroof motor & controller

    Repair procedures Inspection1.Disconnect the negative (-) battery terminal.2.Using a remover and remove the overhead console (A).3.Check for continuity between the terminals.
