Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper.
(Refer to Body - "Front Bumper Cover")
3.
Remove the head lamp.
4.

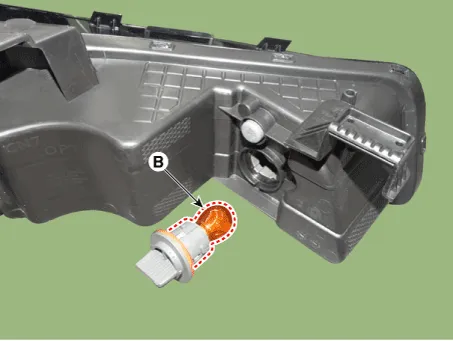

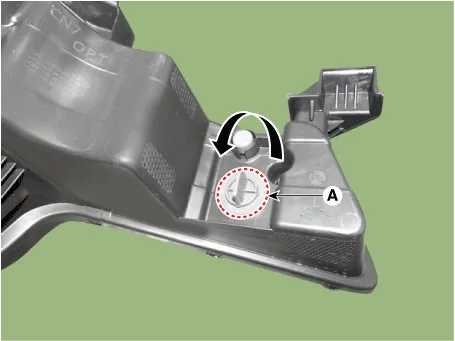

Remove the bulb socket (A) and turn signal lamp bulb (B) from the lamp assembly.

Replacement
1.
Turn the head lamp power off.
2.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
3.

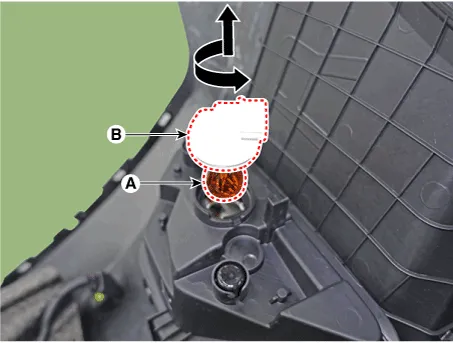

Remove the bulb socket (B) and turn signal lamp bulb (A) from the lamp assembly.

Installation
1.
Install the turn siganl lamp assembly.
2.
Install the head lamp.
3.
Install the front bumper.
4.
Connect the negative (-) battery terminal.
