Hyundai Elantra (CN7): LCD Display / User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Theme selection
8. Other
9. Language
10. Reset

Shift to P to edit settings / Engage parking brake to edit settings

This warning message illuminates if you try to select an item from the User Settings mode while driving.

• Intelligent variable transmission For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift level to P(Park).

Quick guide (Help)

This mode provides quick guides for the systems in the User Settings mode. Select an item, press and hold the OK button.

Information

When the infotainment system is applied, only the User’s Setting mode on the infotainment system is supported but the User’s Setting mode on the instrument cluster is not supported.

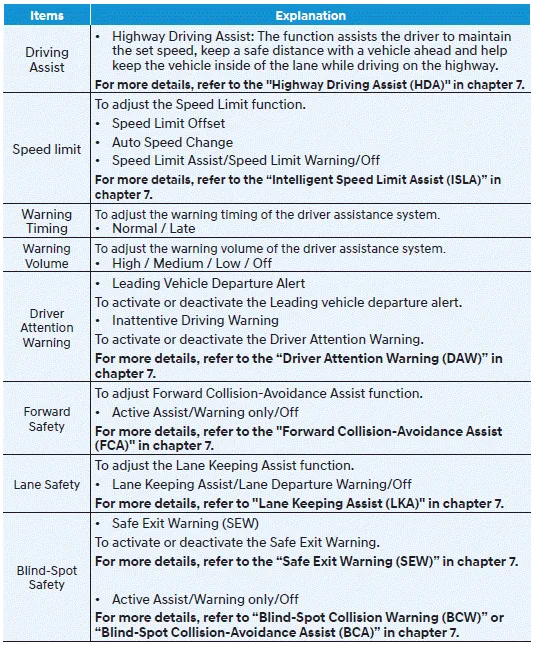

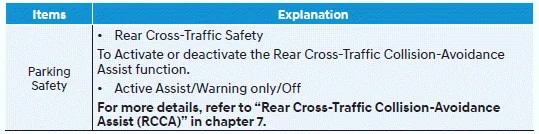

1. Driver Assistance

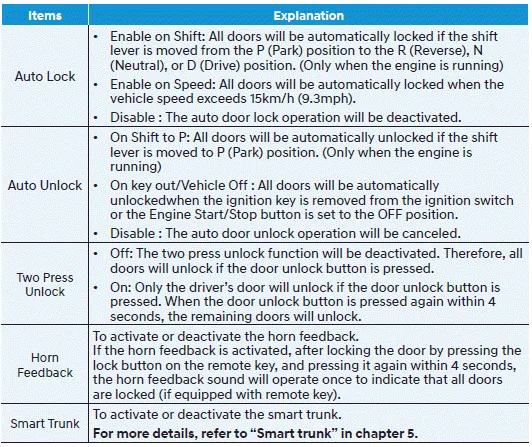

2. Door

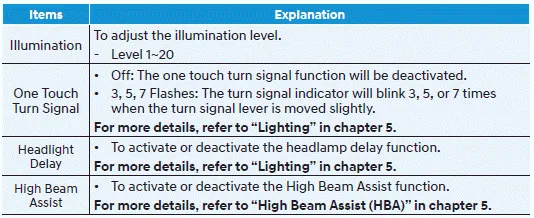

3. Lights

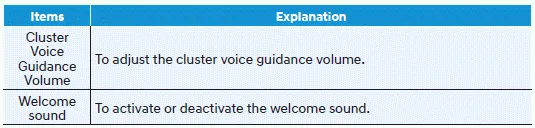

4. sound

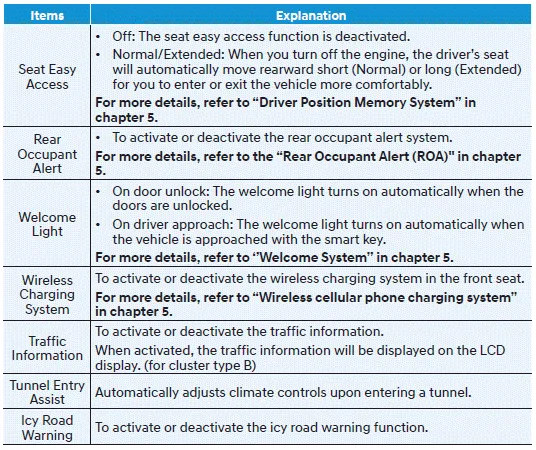

5. Convenience

6. Service interval

To use the service interval menu, consult an authorized HYUNDAI dealer.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

-- Service in

: Displayed to inform the driver the remaining mileage and days to service.

-- Service required

: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

-- The battery cable is disconnected.
-- The fuse switch is turned off.
-- The battery is discharged.

7. Theme selection

To select the style of instrument cluster graphic style and setting.

• Theme A / Theme B / Theme C

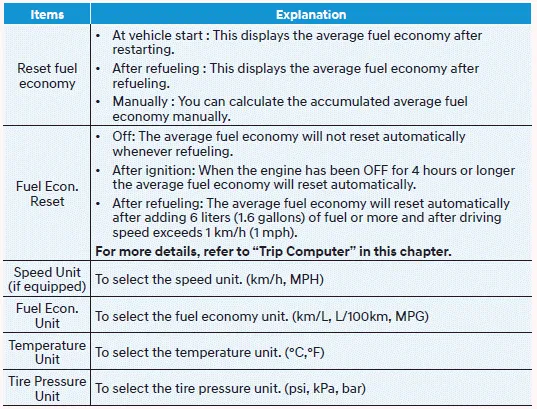

8. Other

9. Language

10. Reset
