Hyundai Elantra (CN7): Maintenance / Wiper Blades

Blade Inspection

Contamination of either the windshield or the wiper blades with foreign matter can reduce the effectiveness of the windshield wiper functionality. Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a clean cloth dampened with washer fluid.

NOTICE

To prevent damage to the wiper blades, arms or other components, do not:

• Use gasoline, kerosene, paint thinner, or other solvents on or near them.
• Attempt to move the wipers manually.
• Use non-specified wiper blades.

Information

Commercial hot waxes applied by automatic car washes have been known to make the windshield difficult to clean.

Blade Replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

• In order to prevent damage to the hood and the wiper arms, the wiper arms should only be lifted when in the top wiping position.
• Always return the wiper arms to the windshield before driving.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

Front windshield wiper service positions

This vehicle has a “hidden” wiper design which means that the wipers cannot be lifted when they are in their bottom resting position.

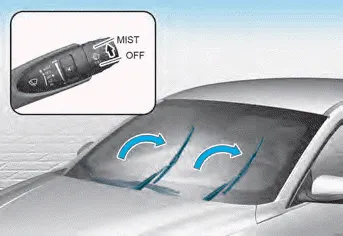

1. Within 20 seconds of turning off the engine, lift and hold the wiper lever up to the MIST position for about 2 seconds until the wipers move to the top wipe position.

2. At this time you can lift the wipers off the windshield.

3. Gently put the wipers back down onto the windshield.

4. Turn the wipers to any ON position to return the wipers to the bottom resting position.

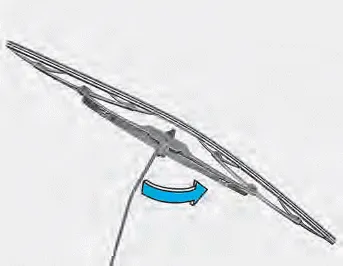

1. Raise the wiper arm.

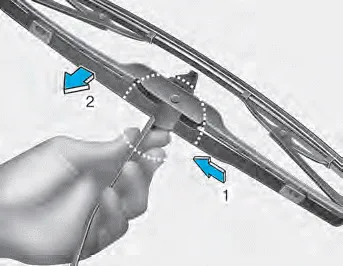

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

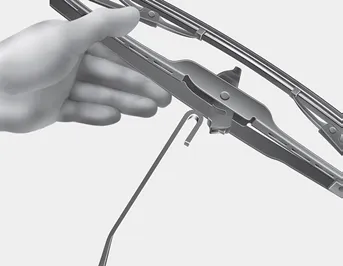

3. Install the new blade assembly.

4. Return the wiper arm on the windshield.
