Hyundai Elantra: Rear Axle Assembly. Rear Hub - Carrier / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Driveshaft and axle / Rear Axle Assembly. Rear Hub - Carrier / Components and components location

Components

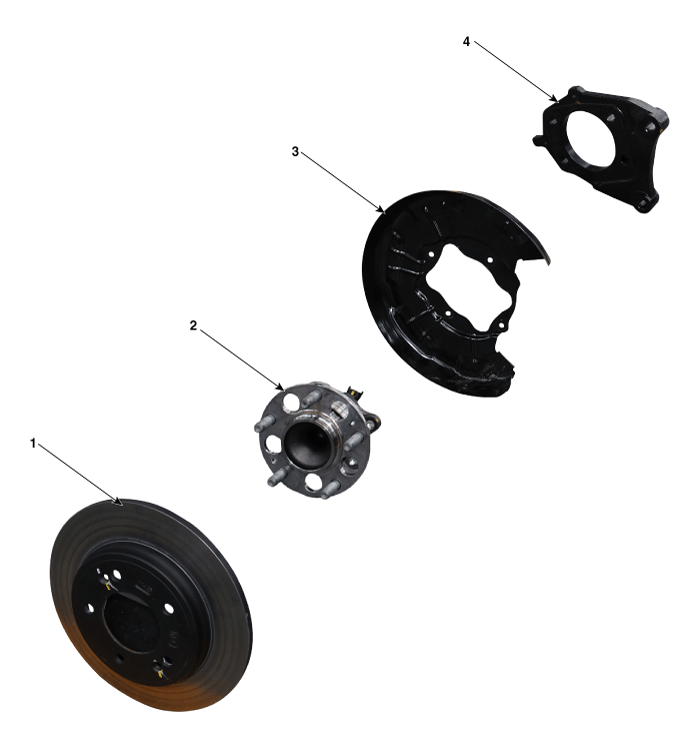

[Rear disc brake type]

1. Rear brake disc
2. Hub bearing assembly

3. Dust cover
4. Rear carrier

[Rear drum brake type]

1. Rear drum
2. Rear hub assembly

3. Brake assembly
4. Spacer

Rear Axle Assembly. Rear Hub - Carrier

Repair procedures

Removal[Rear disc brake type]1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub...
