Hyundai Elantra: Rear Corner Radar System / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Components and components location

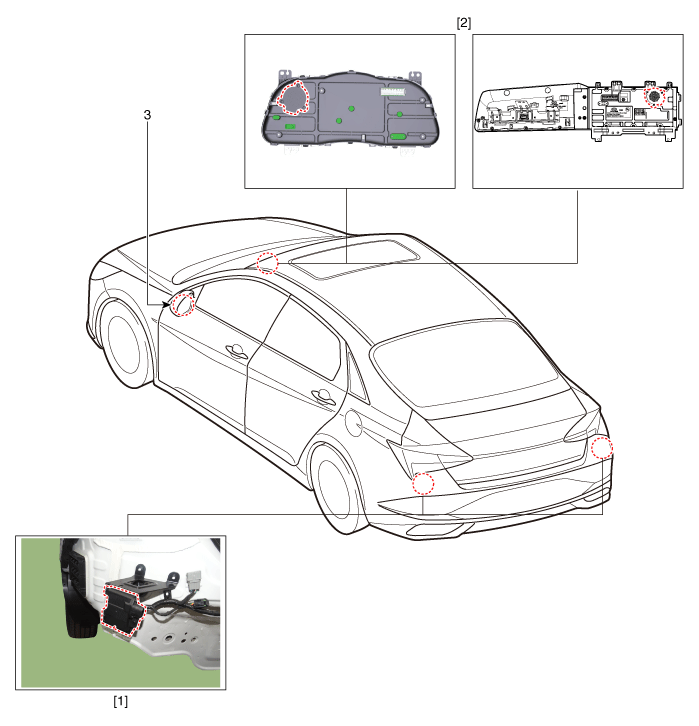

Components

1. Rear corner radar unit
2. Speaker

3. Warning indicator

Troubleshooting

Diagnosis with Diagnostic tool1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool)...

Specifications Specifications Items Blind-Spot Collision Warning (BCW) Blind-Spot Collision- Avoidance Assist-Rear (BCA-R) Rated voltageDC 12VOperating voltage9V - 16VOperating speed30 km/h - 255 km/h60 km/h - 180 km/hSensible distance70m Curvature radiusStart : More than 100mStart : More than 625m Stop : Less than..
