Components and components location
Component Location

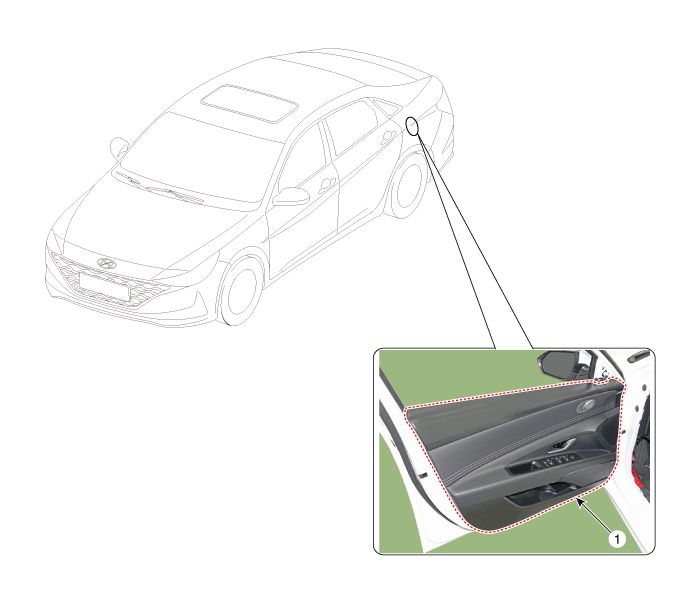

1. Front door trim


Repair procedures
Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

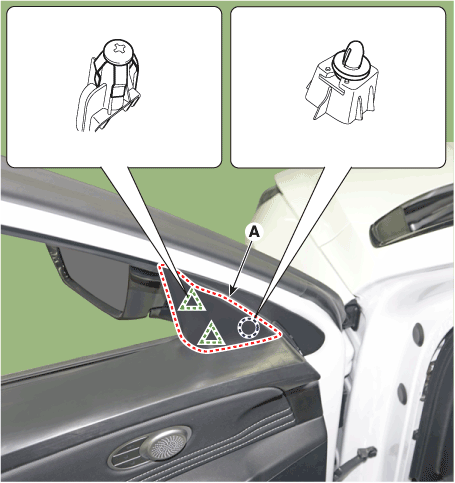

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.

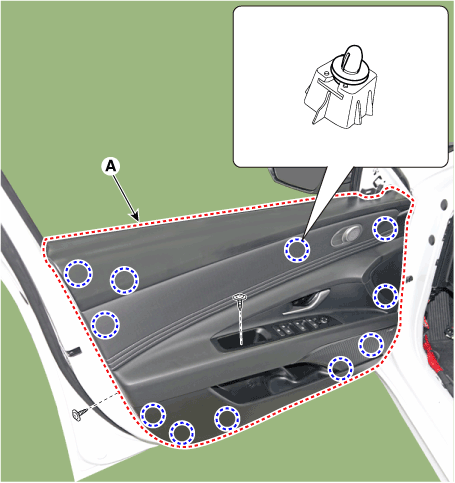

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

3.
Remove the front door inside handle cage (A).

4.

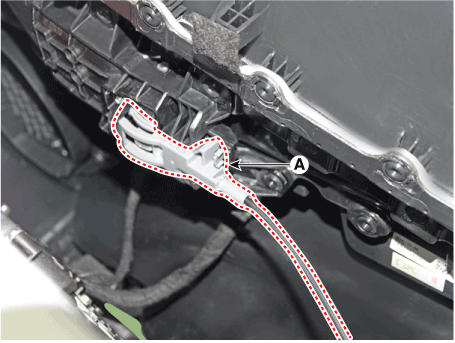

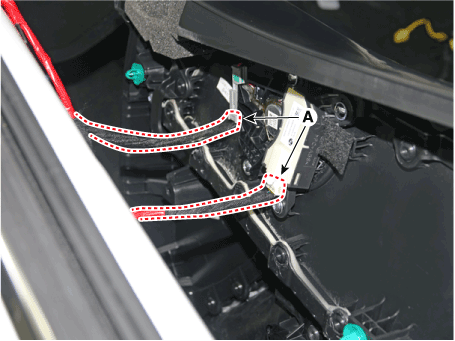

Press the lock pin, separate the connectors (A).

5.
To install, reverse the removal procedure.

•
Be sure to replace the clip (fastener) when re-installing after detaching the door trim.
※ In case of non-exchange, watertightness / exit problems may occur
Water tightness prevention


•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.

    Repair procedures

    AdjustmentGlass Adjustment    • Check the glass run channel for damage or deterioration, and replace it if necessary...

    Front Door Inside Handle

    Repair procedures Removal1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.Cut the heat-welded part with a knife and loosen the mounting screw (B)...
