Hyundai Elantra: Head Lamp Leveling Device / Head Lamp Leveling Switch
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Head Lamp Leveling Device / Head Lamp Leveling Switch

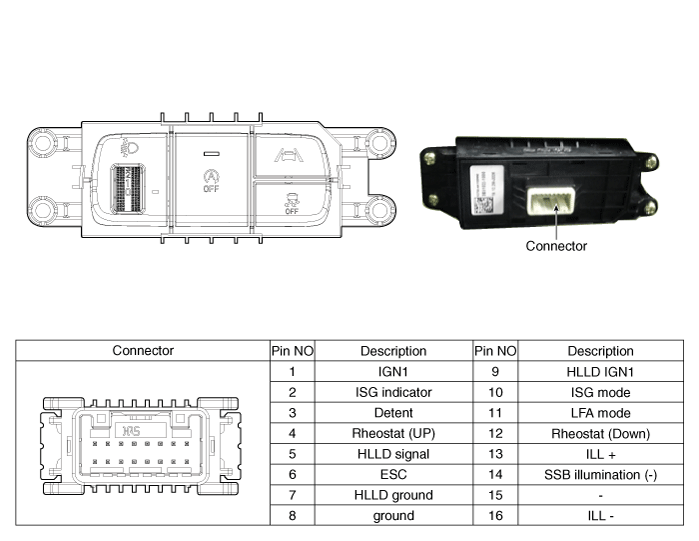

Schematic diagrams
| Schematic Diagrams |
Repair procedures
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |

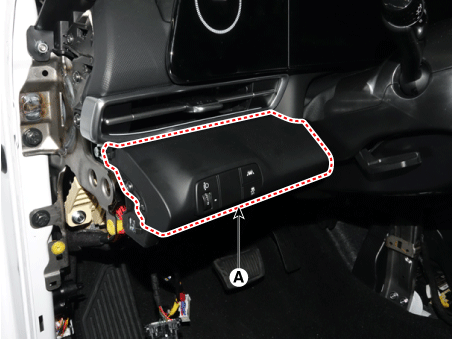

| 2. | Remove the crash pad lower panel (A). (Refer to Body - "Crash Pad Lower Panel") |
| 3. | Loosen the mounting screw and remove the crash pad lower switch (A).
|

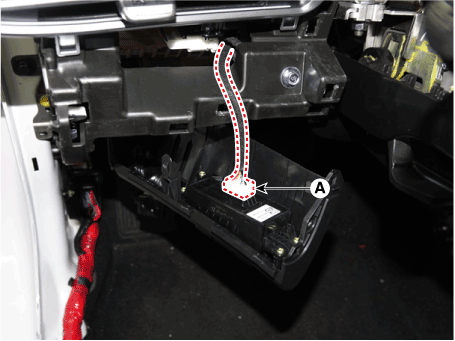

| 4. | Disconnect the crash pad lower switch connector (A).
|
| 5. | To install, reverse the removal procedure. |
