Hyundai Elantra: Blower / Intake Actuator
Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Intake Actuator
Description and operation
| Description |
The intake actuator is located at the blower unit. It regulates the intake door by a signal from the control unit. Pressing the intake selection switch will shift between recirculation and fresh air modes.
Components and components location

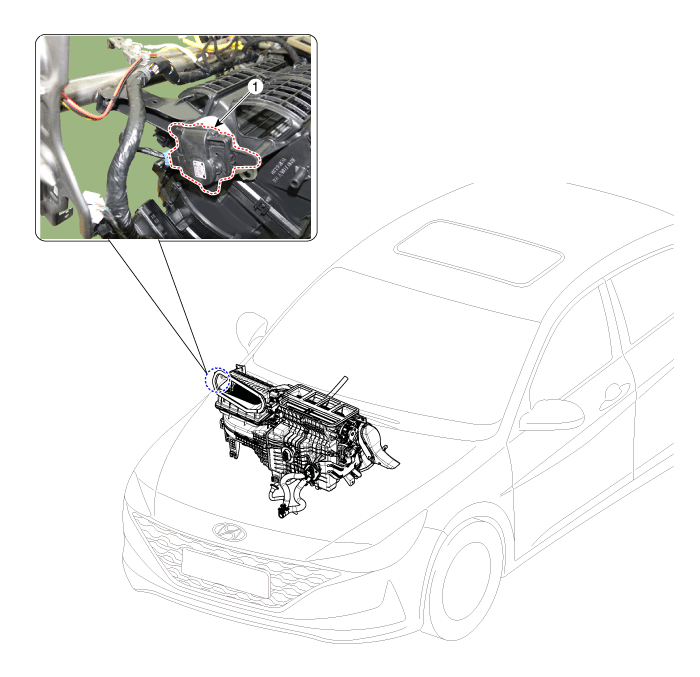

| Components Location |
| 1. Intake actuator |
Specifications
| Specifications |
|
Door position
|
Voltage (V)
|
Error detecting
|
| Max. cooling | 0.3 ± 0.15 | Low voltage : 0.1V or less |
| Max. heating | 4.7 ± 0.15 | High voltage : 4.9V or more |
Repair procedures
| Inspection |

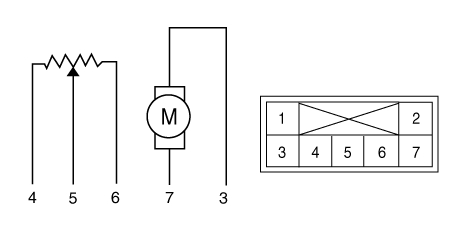

| 1. | Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 7. |
| 2. | Verify that the intake actuator operates to the recirculation position when connected in reverse.
|
| 3. | Connect the intake actuator connector. |
| 4. | Turn the ignition switch ON. |
| 5. | Check the voltage between terminal 6 and 5. |
| 6. | If the measured voltage is not within specification, check the operation by replacing the existing intake actuator with a new genuine part. After that, determine whether replacement of the temperature control actuator is required or not. |
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the Heater & Blower unit assebmly. (Refer to Heater - "Heater Unit") |

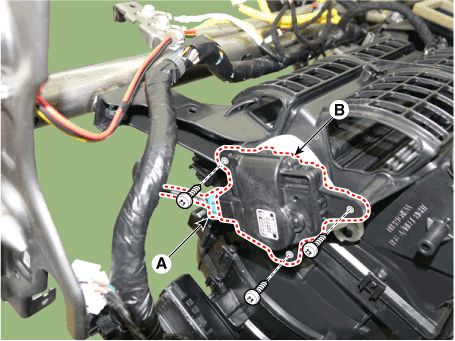

| 3. | Disconnect the connector (A) and then remove the intake actuator (B) after loosening the mounting screws.
|
| 4. | To install, reverse the removal procedure. |
