Hyundai Elantra: Driveshaft Assembly / Joint Assembly (Transaxle side)
Repair procedures
| •
| Drive shaft joints require special grease, so do not add any other type of grease. |
| •
| When replacing the boot band, it must be a new one. |
|
| 1. | Remove the front drive shaft. (Refer to Driveshaft Assembly - "Front Driveshaft") |

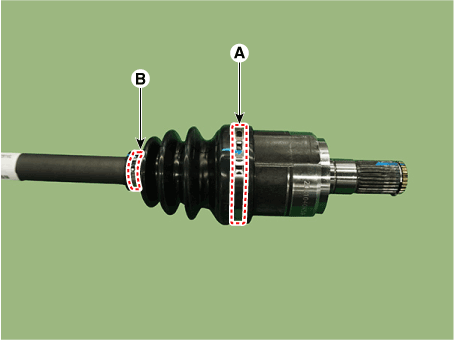

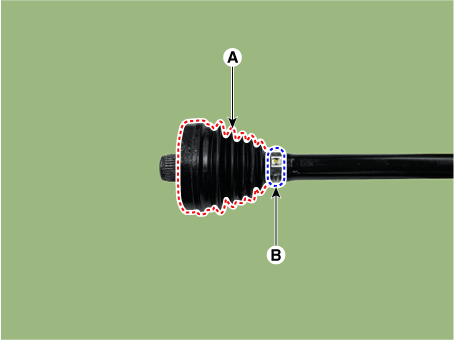

| 2. | Remove the transaxle side large diameter (A) and small diameter (B) boot bands.
| •
| Use the right tool for each type of boot band as shown in the table below.

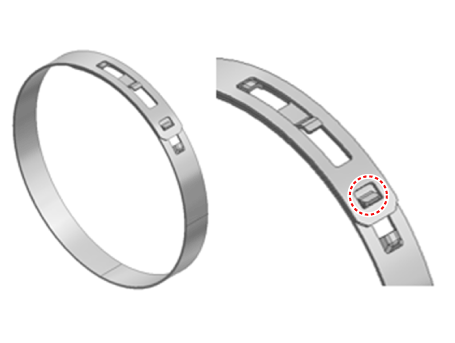

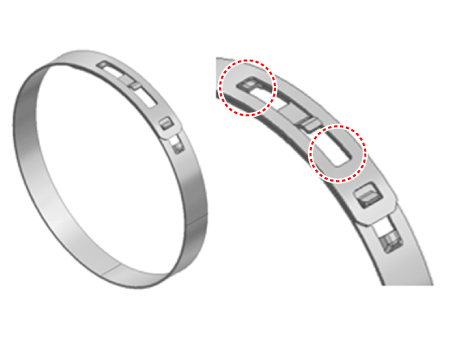

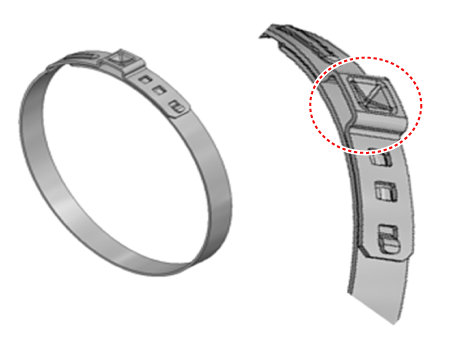

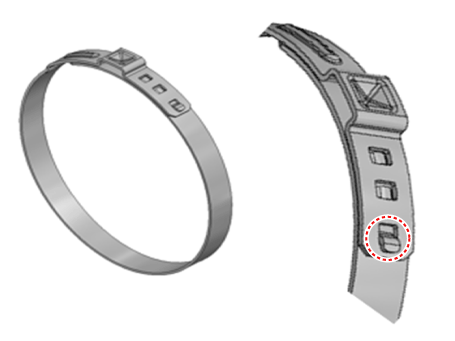

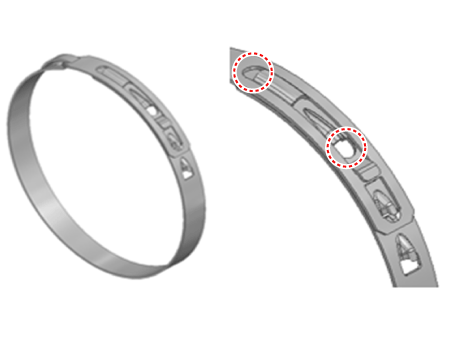

Ear type

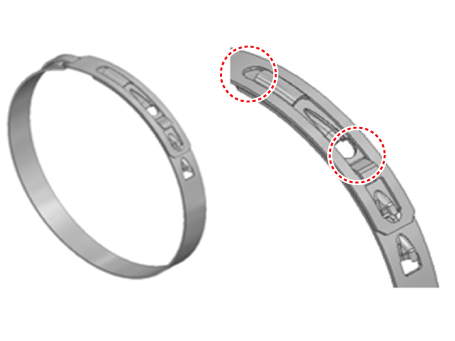

| Hook type
| Hook type [Low profile]
| Driver (-)
| Driver (-)
| SST (0K495-2W000)
|
|
|
|
|
|
|
|
|
| •

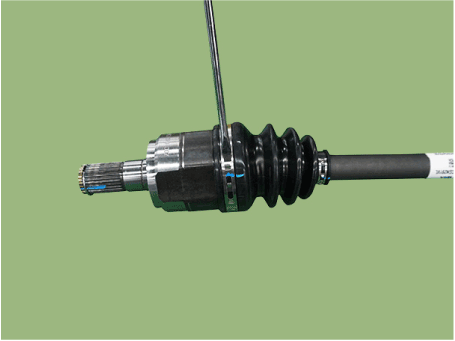

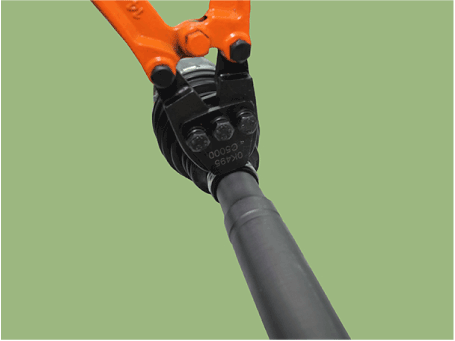

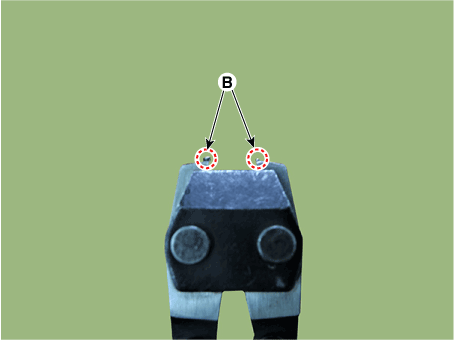

| When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown below.
|
|
|

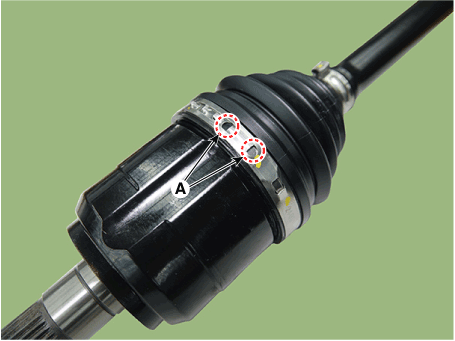

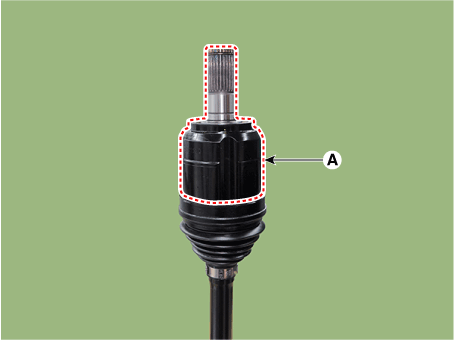

| 3. | Remove the trans axle joint housing (A).
|

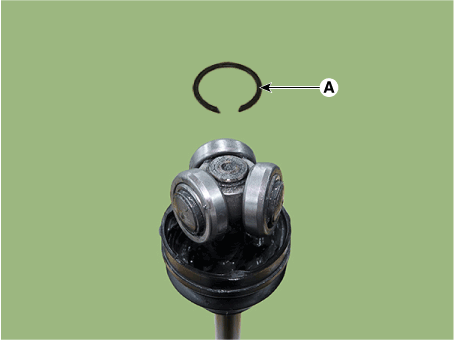

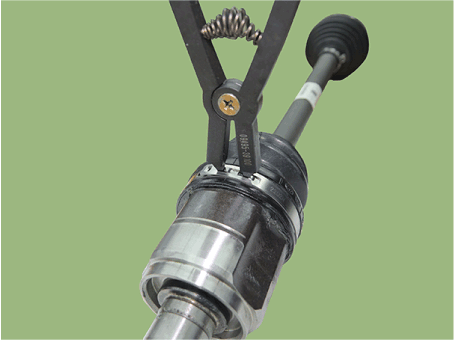

| 4. | Remove the snap ring (A) using a snap ring pliers.
|

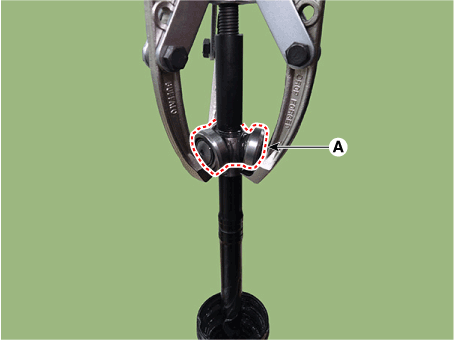

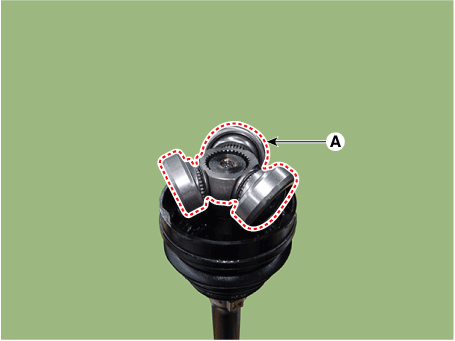

| 5. | Remove the spider assembly (A) from the drive shaft using a puller.
|

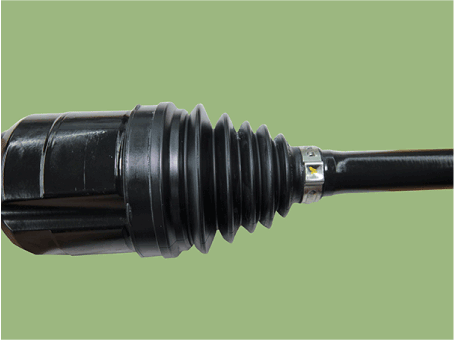

| 6. | Remove trans axle side boot (A).
|
| 7. | Clean the inside of the spider assembly and joint housing. | •
| Remove grease inside the housing as much as possible. |
|
|

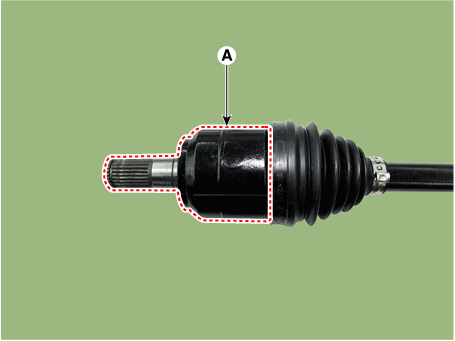

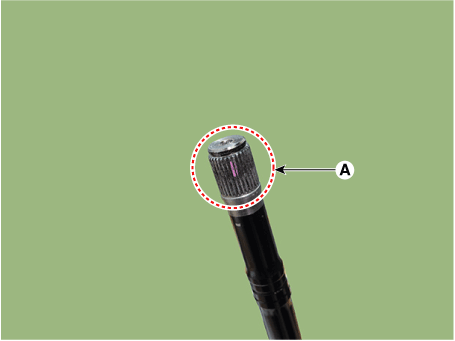

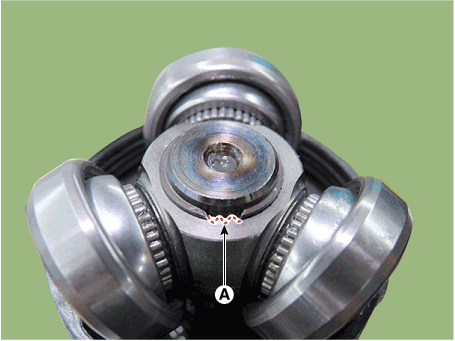

| 1. | Check spline (A) for damage / wear / crack.
|
| 2. | Check the boot for water or foreign objects. |
| 3. | Check joint assembly for damage / wear / crack and rust. |
| 4. | Replace any defective parts. |
| •
| When assembling, be careful not to let dust and foreign substances enter. |
| •
| Driveshaft joints require special grease, so do not add any other type of grease. |
| •
| Boot bands must use the new one. |
|
| 1. | Install the transaxle side boot (A) and boot band (B) on the driveshaft. | •
| Put the boot band (B) first on the drive shaft before installing the boot (A).
|
|
| •

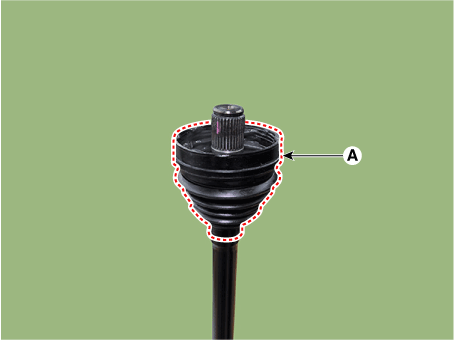

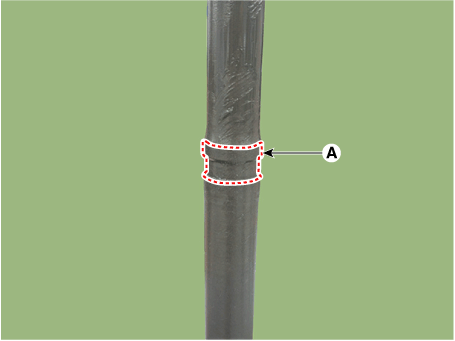

| When installing the boot, seats in the mounting part (A).
|
|
|
| 2. | Install the spider assembly (A) on the shaft (B), then press it using a mallet.
| •
| When installing the spider assembly (A), install it in the correct direction. |
| •
| Installing in the wrong direction can cause secondary quality problems.
|
| •

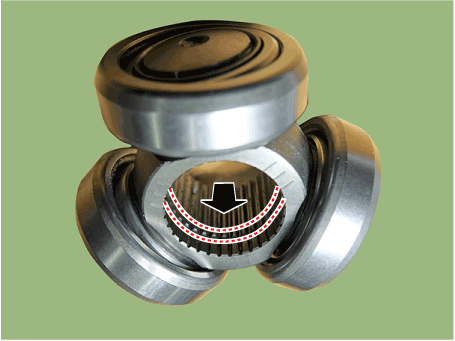

| When installing the spider assembly, install it according to the boot shape.
|
|
|
| 3. | Install the snap ring (A) using the snap ring pliers.
| •
| When replacing the joint assembly, use the new one provided in the joint kit. |
| •
| The snap ring must be new. |
| •
| After installing the snap ring, make sure that there are only 2 - 3 splines in position (A).
|
|
|
| 4. | Apply specified grease inside the joint housing (A) and boot (B).
| •
| Use the grease provided with the joint/boot kit. |
| •
| Apply about 70% grease to the housing (A) and about 30% grease to the boot (B). |
| •
| Driveshaft joints require special grease, so do not add any other type of grease. |
|
|
| 5. | Install the trans axle side joint housing (A).
| •

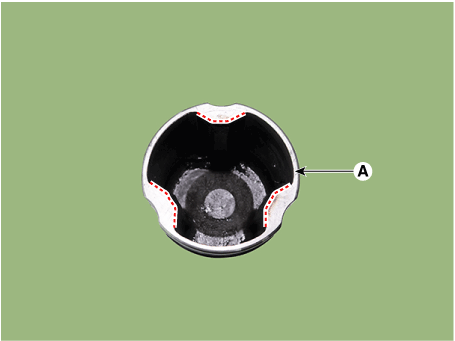

| When installing the housing, turn the boot to fit each other. |
| •
| If the shape of housing and boot does not fit, there is a possibility of leakage due to the gap. Be very careful.
|
|
|

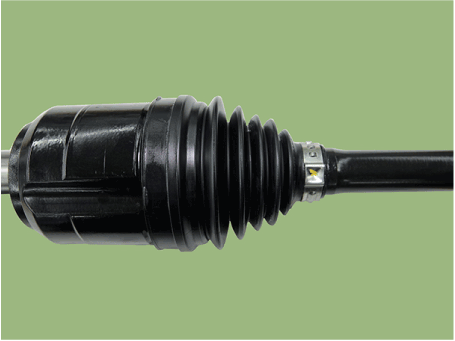

| 6. | Adjust the air inside the boot to normal as shown below.

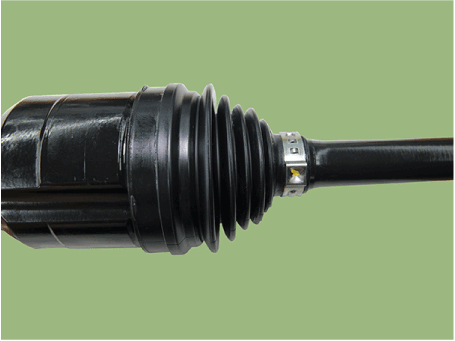

Normal
| Lack of air
| Too much air
|
|
|
|
| •
| After installing the joint housing, perform air bleeding by pressing it several times until no air is heard. |
|
|
| 7. | Install the transaxle side joint large diameter (A) and small diameter (B) boot band.
Ear type
| Hook type
| Hook type [Low profile]
| SST (0K495-C5000)
| SST (09495-39100)
| SST (0K495-2W000)
|
|
|
|
|
|
|
| •
| Install in the following order: large diameter boot band → small diameter boot band. |
| •
| Installing in the wrong order can cause leaks. |
| •

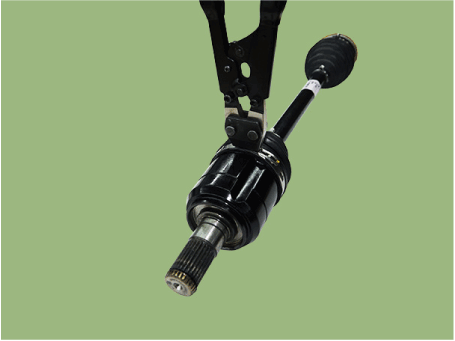

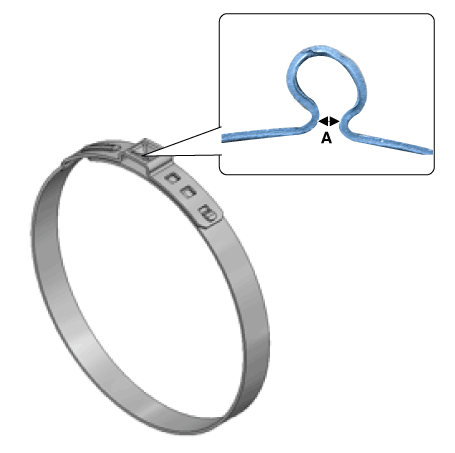

| When installing the ear type boot band, check the clearance (A) as shown below. Clearance (A) : 2.0 mm or less. |
|
| •
| When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown below.
|
|
|
| 8. | Install the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") |
