Hyundai Elantra: Mirror / Outside Rear View Mirror

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Mirror / Outside Rear View Mirror

Components and components location

Component Location

1. Outside rear view mirror

Repair procedures

Replacement

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

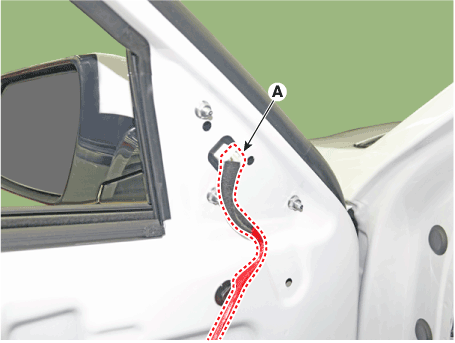

2.	Disconnect the outside rear view mirror connector (A).

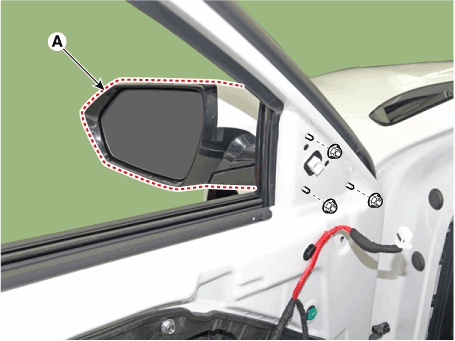

After loosening the mounting nuts, remove the outside rear view mirror (A).

Tightening torque :

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Replace any damaged clips (or pin - type retainers).
