Hyundai Elantra (CN7) 2021-2025 Service Manual / Brake System / Parking Brake System / Parking Brake Lever

Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Release the parking brake.
3.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
4.

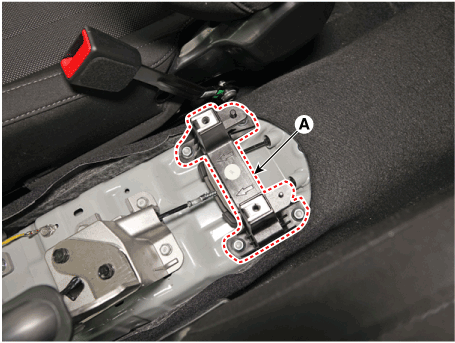

Remove the floor console mounting bracket (A).

5.
Disconnect the parking brake switch connector (A).

6.

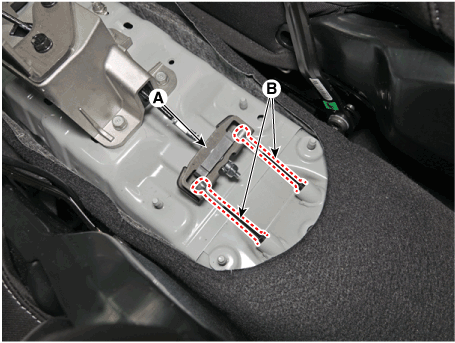

Disconnect the parking brake cable (B) from the equalizer assembly (A).

7.

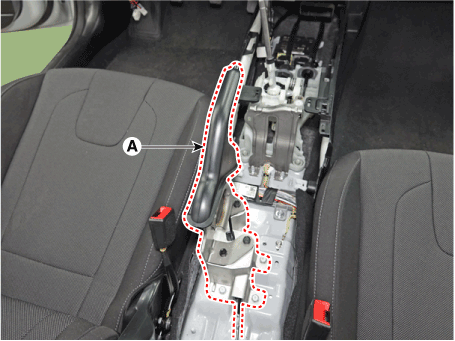

Remove the parking brake lever assembly (A) after loosening the parking brake lever mounting bolts.

Installation
1.
Install the parking brake lever assembly (A).
Tightening torque :
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

2.
Install the parking brake cable (B) in the equalizer assembly (A).

3.

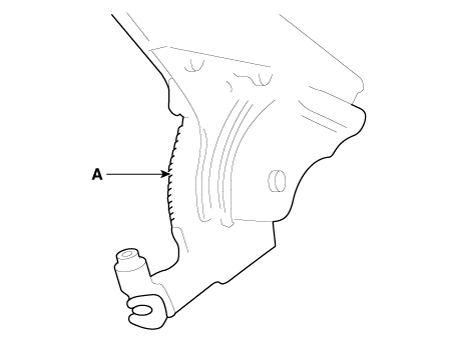

Apply a coating of the specified grease to each sliding parts (A) of the ratchet plate or the ratchet pawl.
Specified grease :
CASMOLY 623

4.

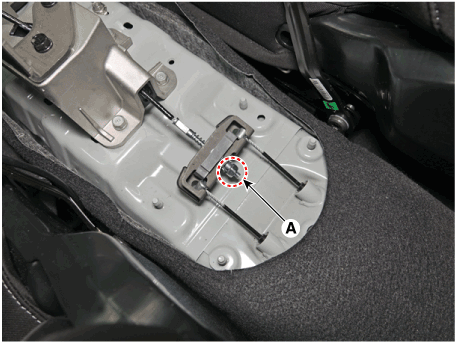

Install the parking brake cable adjuster, then adjust the parking brake lever stroke by turning adjusting nut (A).
Parking brake lever stroke :

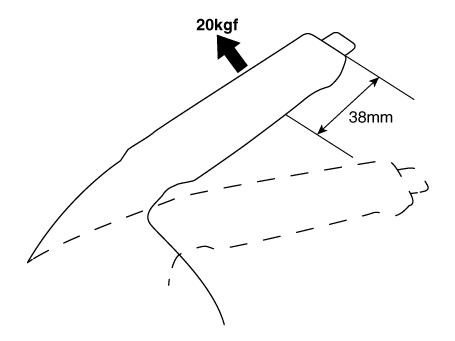

5 - 7 clicks (Pull the lever with 196N (20 kgf, 44 lbf))

5.
Connect the parking brake switch connector (A).

Adjustment
1.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
2.
After bleeding, the brake pedal is operated 20 times with a force of 10 kgf or more, and the parking brake lever is operated more than 3 times to full stroke to secure the cable.
3.
Install the parking brake cable adjuster, then adjust the parking brake lever stroke by turning adjusting nut (A).
Parking brake lever stroke :
5 - 7 clicks (Pull the lever with 196N (20 kgf, 44 lbf))

4.

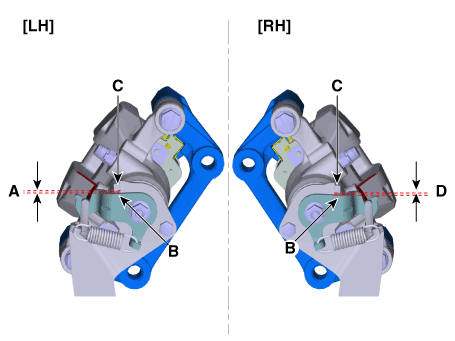

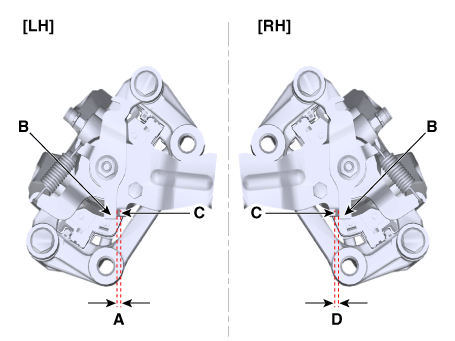

Fasten the adjusting nut and tighten the parking brake cable until the sum of distance (A and D) from the stopping point to the activating lever (B) and to stopper (C) is less than 3 mm.
Distance (A + D) : Max. 3 mm (0.12 in)
[G 1.6 MPI / LPI]

[G 1.6 T-GDI]

5.
Release the parking brake lever fully, and check that parking brakes do not drag when the rear wheels are turned. Readjust if necessary.
6.
Make sure that the parking brakes are fully applied when the parking brake lever is pulled up fully.
7.
Install the floor console.
(Refer to Body - "Floor Console")

    Components and components location

    Components[G 1.6 MPI / LPI]1. Parking brake lever2. Equalizer assembly3. Parking brake cable4. Rear caliper[G 1.6 T-GDI]1. Parking brake lever2. Equalizer assembly3...

    Parking Brake Switch

    Repair procedures Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Release the parking brake.3.Remove the floor console assembly...
