Hyundai Elantra: Power Door Mirrors / Power Door Mirror Switch
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch
Components and components location
| Components |
Schematic diagrams

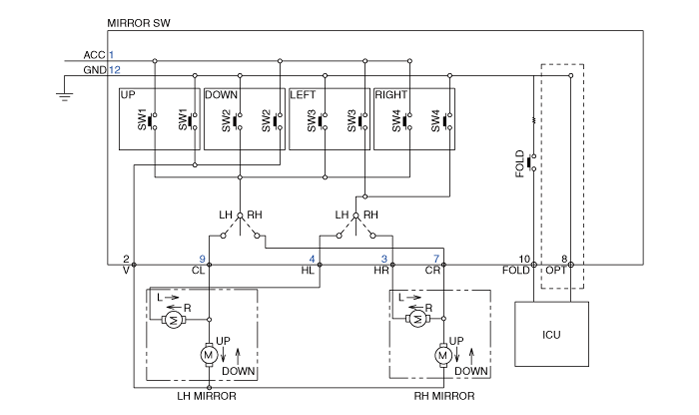

| Circuit Diagram |
Without Mirror Folding
With Mirror Folding
Repair procedures
| Inspection |
[Power Window Switch]
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the driver door trim. (Refer to Body - "Front Door Trim") |

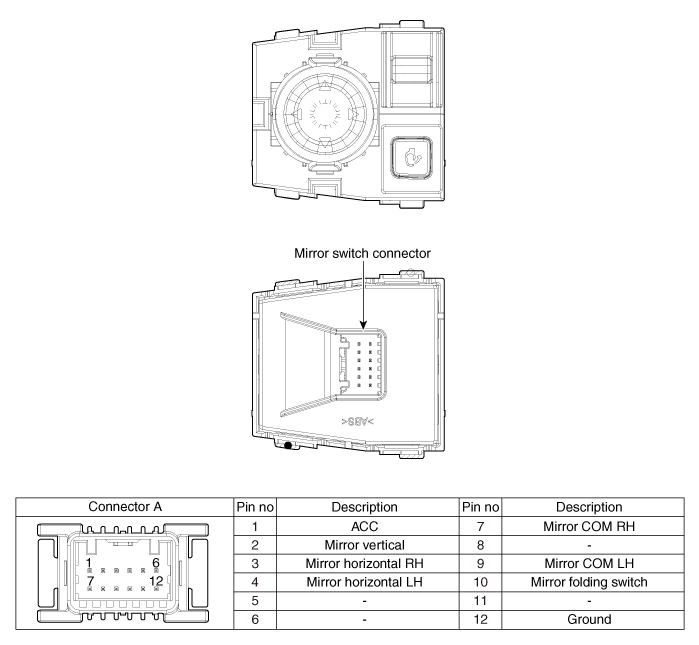

| 3. | Disconnect the power mirror switch connector from the door trim.
|

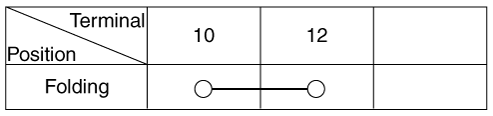

| 4. | Check for continuity between the terminals in each switch position according to the table. [Power Folding Mirror Switch]
|
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front door trim. (Refer to Body - "Front Door Trim") |

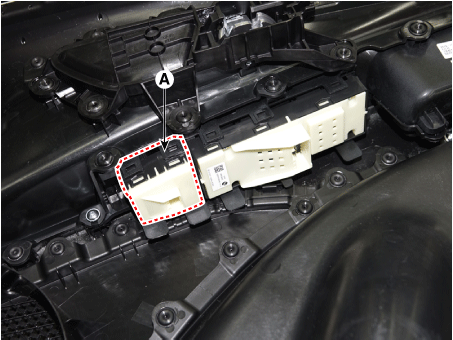

| 3. | Remove the power window assembly (A).
|
| Installation |
| 1. | Install the power window switch assembly. |
| 2. | Install the front door trim after connect the connector. |
| 3. | Connect the negative (-) battery terminal.
|
Power Door Mirror Actuator
Repair procedures
Removal1.Disconnect (-) battery terminal.2.Using a fastener remover (C), remove the mirror (A) as illustration below.
•
Protect mirror from removing tool with cloth (B) wrapped...
