Hyundai Elantra: Power Windows / Power Window Switch
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Power Windows / Power Window Switch
Components and components location
| Components |

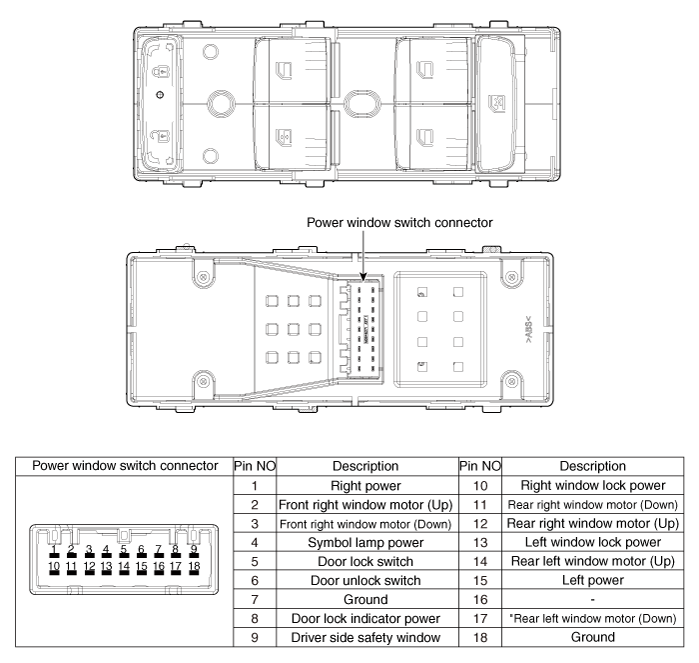

Driver Power Window Switch

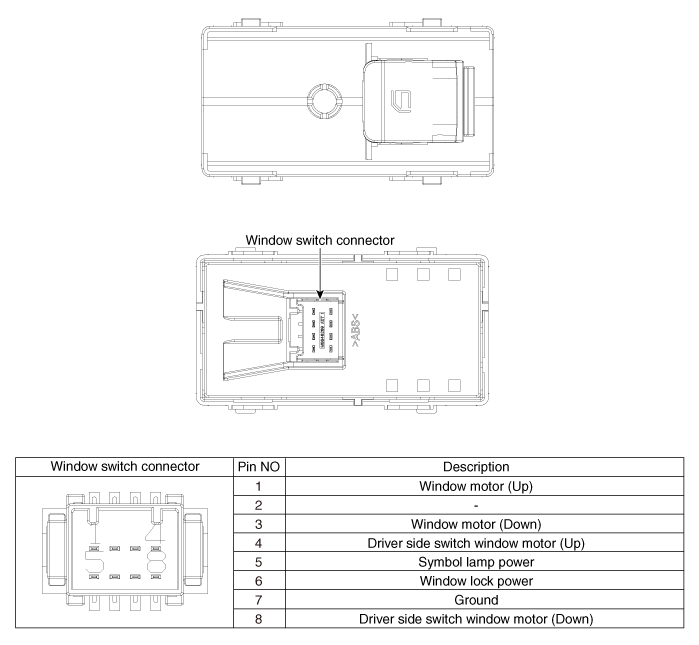

Sub Power Window Switch (Passenger)
Sub Power Window Switch (Rear)
Schematic diagrams
| Circuit Diagram |
Main power window switch

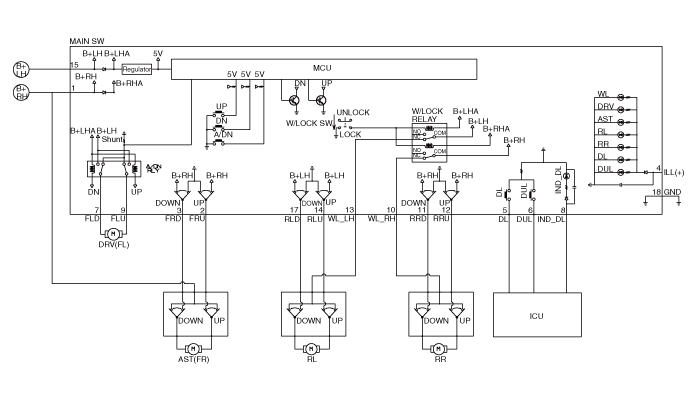

| [Auto down + Door lock] |

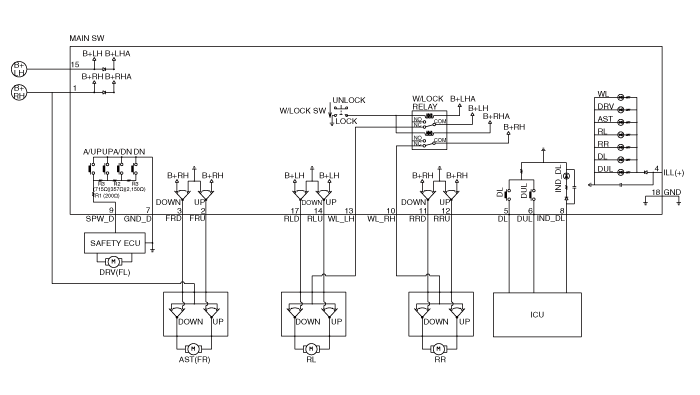

| [Driver side safety + Door lock] |
Sub Power Window Switch (Passenger)
Sub Power Window Switch (Rear)
| [Non auto] |

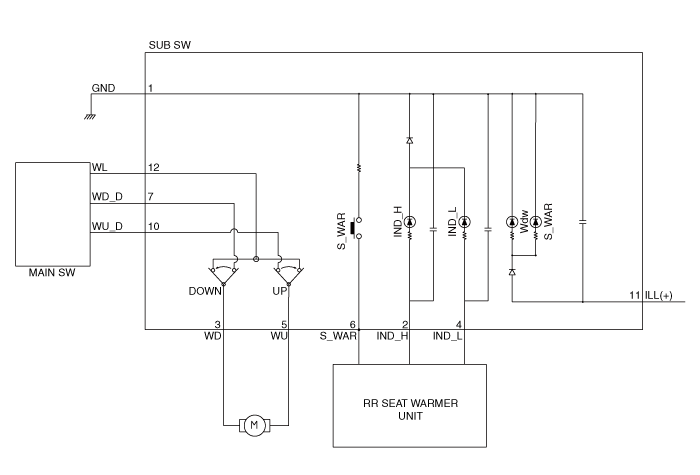

| [Non auto + Seat heater] |
Repair procedures
| Removal |
Driver / Passenger Power Window Switch
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front door trim. (Refer to Body - "Front Door Trim") |

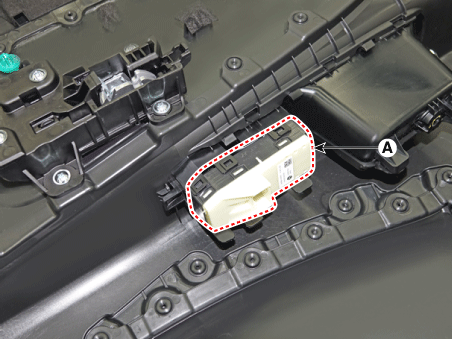

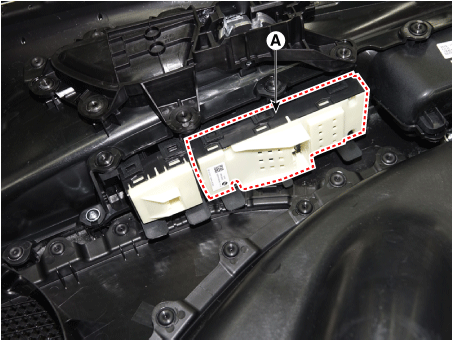

| 3. | Remove the power window switch (A).
|
Rear Power Window Switch
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the rear door trim. (Refer to Body - "Rear Door Trim") |
| 3. | Remove the power window switch assembly after disengaging the mounting clips.
|
| Installation |
Driver / Passenger Power Window Switch
| 1. | Install the power window switch assembly. |
| 2. | Install the front door trim after connect the connector. |
Rear Power Window Switch
| 1. | Install the power window switch assembly. |
| 2. | Install the rear power window switch. |
Power Window Motor
Components and components location
Components
Schematic diagrams
Circuit DiagramStandard type
Repair procedures
Inspection
•
Wrap the protective tape on the tool to disassemble with the screwdriver or remover...
