Hyundai Elantra (CN7): Parking Safety / Rear View Monitor (RVM)

Rear View Monitor will show the area behind the vehicle to assist you when parking or backing up.

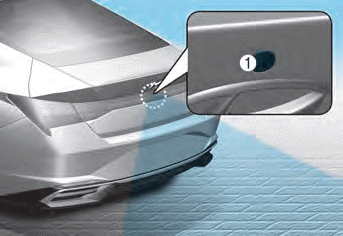

Detecting sensor

[1] : Rear view camera

Refer to the picture above for the detailed location of the detecting sensor.

Function settings

Camera settings

You can change Rear View Monitor settings by pressing the setup icon ( ) on the screen while the system is operating, or select ‘Driver Assistance → Parking Safety → Camera Settings’ from the Settings menu while the Engine Start/Stop button is in the ON position.

Operating button

Parking/View button

Press the Parking/View button (1) to turn on Rear View Monitor.

Press the button again to turn off the function.

Function operation

Rear view

Operating conditions

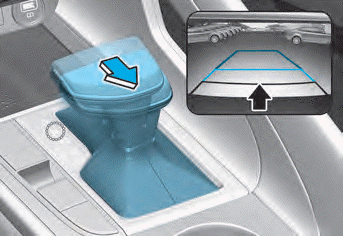

• Shift the gear to R (Reverse), the image will appear on the screen.
• Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen. However, parking guidance is not displayed.

Off conditions

• The rear view cannot be turned off when the gear is in R (Reverse).
• Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
• Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

Maintaining rear view

The rear view will maintain showing on the screen to help you when parking. However, parking guidance is not displayed.

Operating conditions

Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.

Off conditions

• When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.
• Shift the gear to P (Park), the rear view will turn off.

Driving rear view

The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.

Operating conditions

Press the Parking/View button (1) while the gear is in D (Drive) or N (Neutral), the driving rear view will appear on the screen.

Off conditions

• Press the Parking/View button (1) again, the driving rear view will turn off.
• Press one of the infotainment system button (2), the driving rear view will turn off.
• Shift the gear to P (Park), the driving rear view will turn off.

When operating

• If the gear is shifted to R (Reverse), while Driving rear view is displayed on the screen, the screen will change to rear view with parking guidance.
• When Driving rear view is displayed on the screen, an icon ( ) will appear on the upper right side of the screen indicating that the rear view is being displayed.

Rear top view

When you touch the icon (1), the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.

Function malfunction and limitations

Function malfunction

When Rear View Monitor is not working properly, or the screen flickers, or the camera image does not display normally, we recommend that the system be inspected by an authorized HYUNDAI dealer.

Limitations of the function

When the vehicle is stopped for a long time in winter or when the vehicle is parked in an indoor parking lot, the exhaust fumes may temporarily blur the image.

WARNING

• The rear view camera does not cover the complete area behind the vehicle. The driver should always check the rear area directly through the inside and outside rearview mirror before parking or backing up.
• The image shown on the screen may differ from the actual distance of the object. Make sure to directly check the vehicle's surroundings for safety.
• Always keep the rear view camera lens clean. If the lens is covered with foreign material, it may adversely affect camera performance and Rear View Monitor may not operate normally.
