Release Residual Pressure in Fuel Line

•	There may be some residual pressure even after "Release Residual Pressure in Fuel Line" work, so cover the hose connection with a shop towel to prevent residual fuel from spilling out before disconnecting any fuel connection.

1.	Turn the ignition switch OFF and disconnect the battery (-) cable.

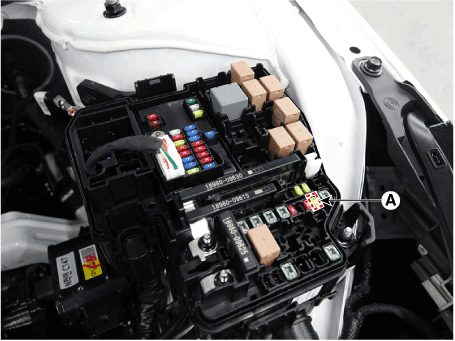

2.	Remove the fuel pump fuse (A).

3.	Connect the battery (-) cable.

4.	Start the engine and let idle, and then turn the ignition switch OFF after the engine has stopped on its own.

5.	Disconnect the battery (-) cable, and then install the fuel pump fuse.

6.	Connect the battery (-) cable.

Delete the Diagnostic Trouble Code (DTC) related the fuel pump fuse with the diagnostic tool.

•	When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
