Hyundai Elantra: Towing / Removable towing hook

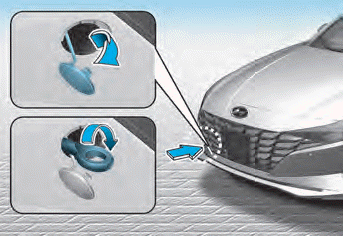

1. Open the trunk, and remove the towing hook from the tool case.

2. Remove the hole cover by pressing the lower part of the cover on the bumper.

3. Install the towing hook by turning it clockwise into the hole until it is fully secured.

4. Remove the towing hook and install the cover after use.
