Hyundai Elantra: Trunk Lid / Trunk Lid Back Panel

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Back Panel

Components and components location
Component Location

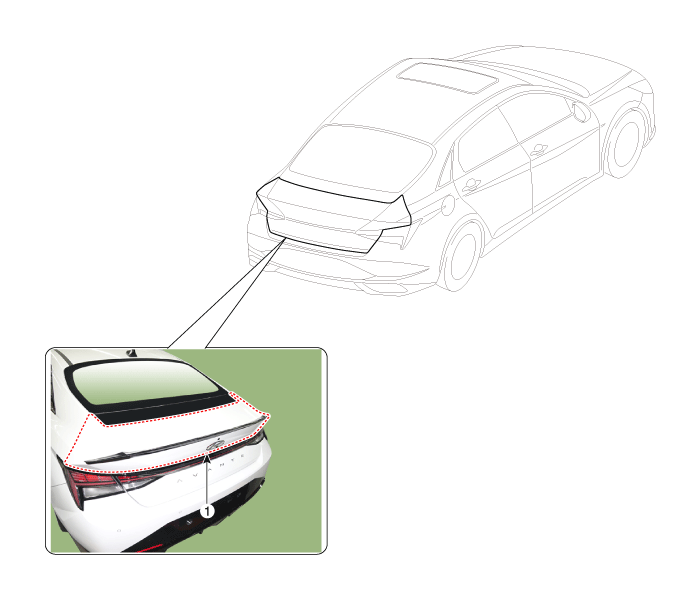

1. Trunk lid back panel


Repair procedures
Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim")
2.

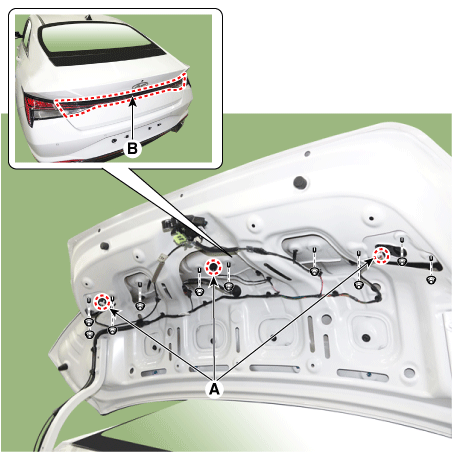

Disconnect the rear combination lamp connector (A).
3.
Loosen the mounting bolts, remove the rear combination lamp (B).

4.

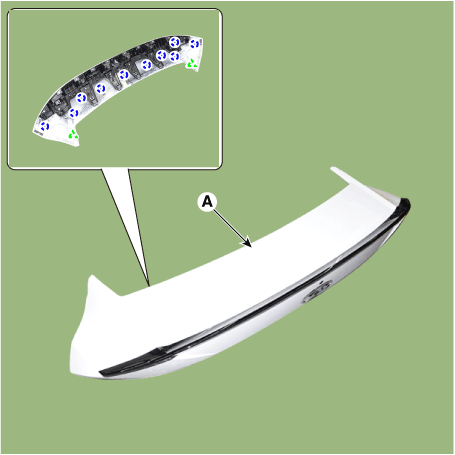

Loosen the mounting bolts, remove the trunk lid back panel (A).

5.
To install, reverse the removal procedure.

•
Make sure the connectors are connected in properly.
•
Replace any damaged clips.
