Hyundai Elantra: Wireless Power Charger System / Wireless Charging Lamp

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Wireless Power Charger System / Wireless Charging Lamp

Components and positions

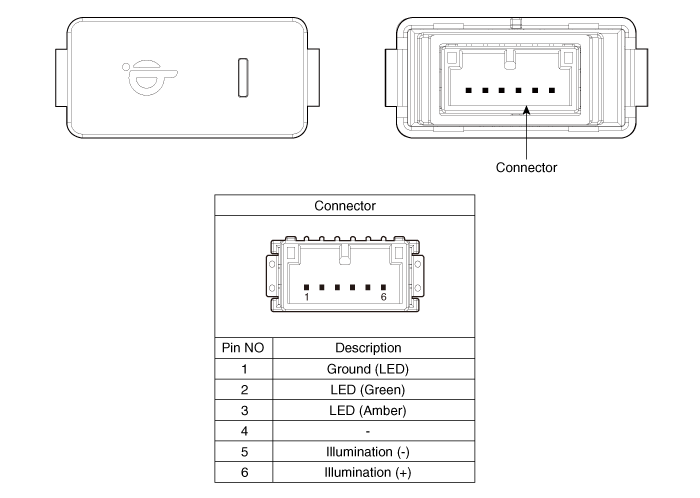

Components

Repair procedures

Removal

•	Handling wireless charging system parts by wet hands may cause electric shock.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the floor console upper cover assembly. (Refer to Body - "Floor Console Upper Cover")

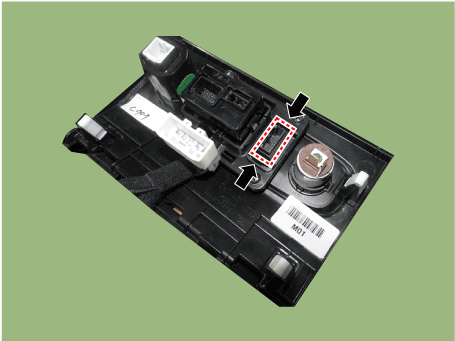

3.	Push the lock pin and remove the wireless charging lamp.

Installation

1.	Install the wireless charging lamp.

2.	Install the floor console upper cover assembly.

3.	Connect the negative (-) battery terminal.
