Hyundai Elantra: Clutch System / Clutch Tube

Hyundai Elantra (CN7) 2021-2025 Service Manual / Clutch System / Clutch System / Clutch Tube

Components and components location

Components and Components Location

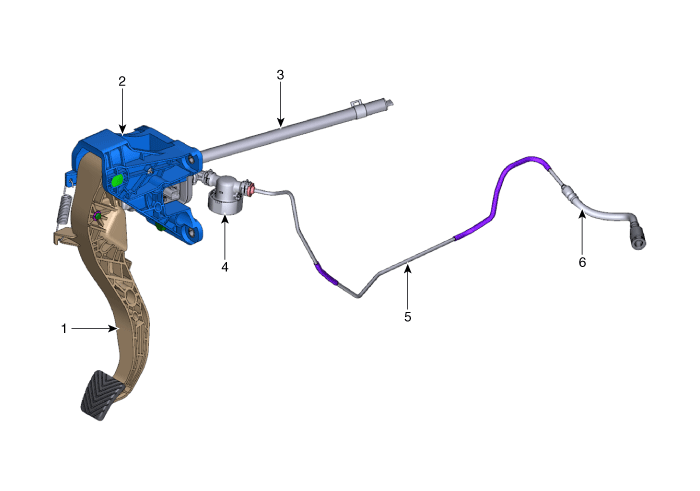

[Gasoline 1.6 MPI / Gasoline 2.0 MPI]

1. Clutch pedal arm
2. Clutch pedal assembly
3. Reservoir hose

4. Regulator
5. Cluch tube
6. Clutch hose

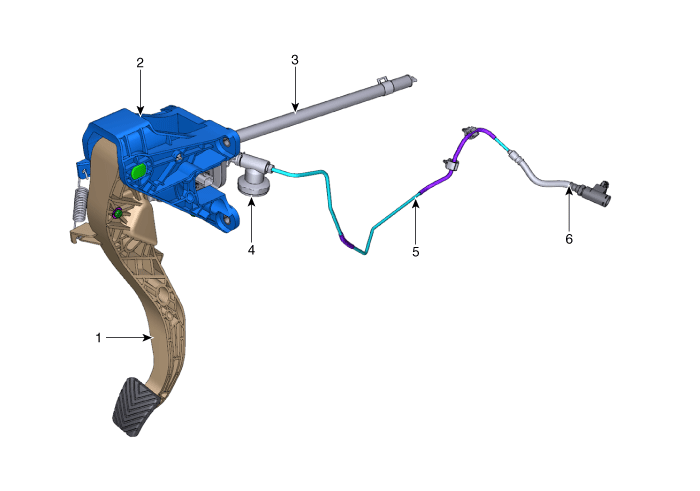

[Gasoline 1.6 T-GDI]

1. Clutch pedal arm
2. Clutch pedal assembly
3. Reservoir hose

4. Regulator
5. Cluch tube
6. Clutch hose

Repair procedures

Removal

1.	Remove the air cleaner and air duct. (Refer to Engine Mechanical System - "Air Cleaner")

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

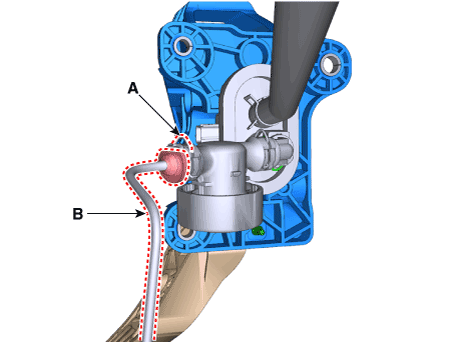

Pull the snap pin (A) and then separate the clutch tube (B). [Gasoline 1.6 MPI / Gasoline 2.0 MPI]

•	Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

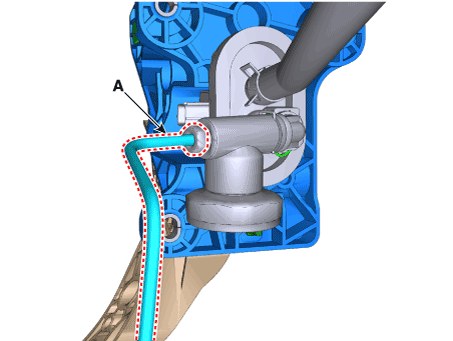

Loosen the flare nut and then separate the clutch tube (A). [Gasoline 1.6 T-GDI]

Tightening torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 Ib-ft)

•	Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

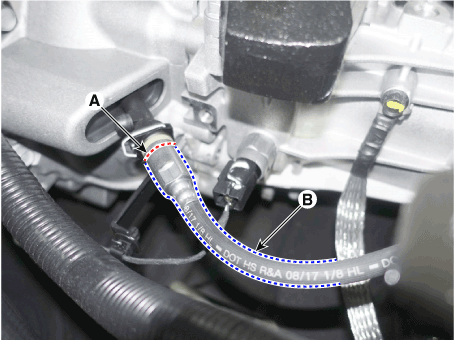

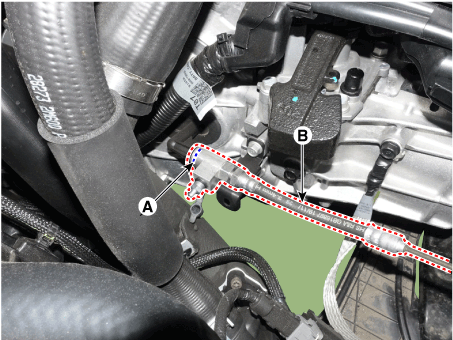

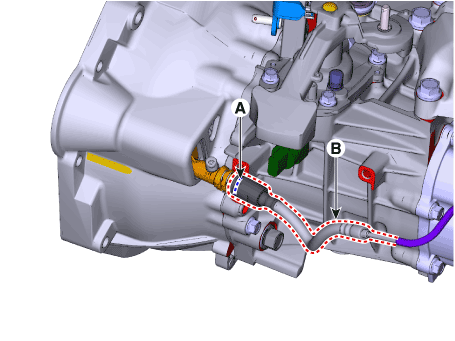

5.	Remove the snap pin (A) and then separate the clutch hose & tube (B). [Gasoline 1.6 MPI] [Gasoline 1.6 T-GDI] [Gasoline 2.0 MPI]

6.	Remove the clutch hose & tube from the vehicle.

Installation

1.	To install, reverse the removal procedures.

2.	Perform bleeding air procedure in concecntric slave cylinder after pouring the brake fluid (Refer to Clutch System - "Concentric Slave Cylinder Assembly")
