Hyundai Elantra (CN7): Power Door Locks / Components and components location
| Component Location |

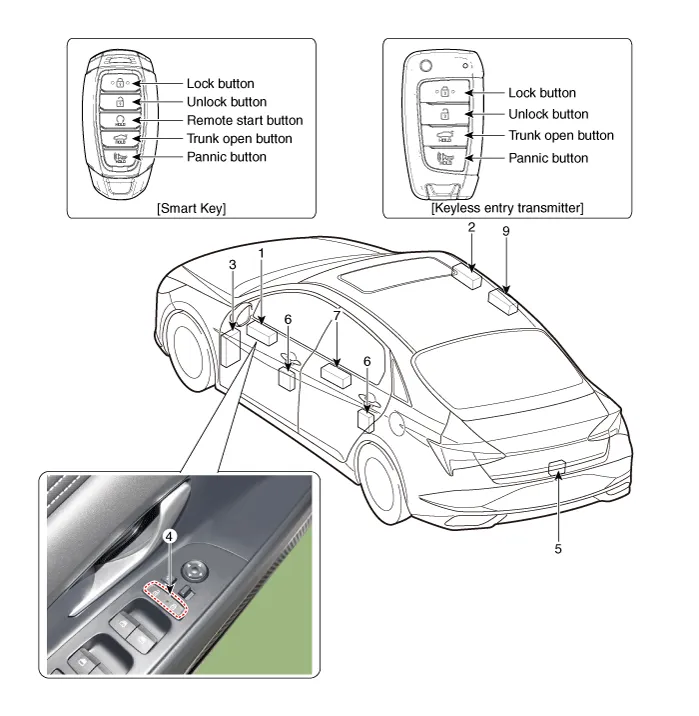

| 1. DDM (Driver Door Module) 2. ADM (Assist Door Module) 3. Integrated Central Control Unit (ICU) 4. Door lock knob 5. Trunk lid actuator | 6. Door latch module 7. Door lock/unlock switch 8. RLDM (Rear Left Door Module) 9. RRDM (Rear Right Door Module) |
Components and components location Conponents1. Door latch assembly2. Door latch cable Repair procedures Inspection • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
Other information:
Hyundai Elantra (CN7) 2021-2025 Service Manual: Receiver-Drier
Repair procedures Replacement1.Remove the condenser.2.Remove the cap (A) on the bottom of the condenser with a L wrench. Tightening torque : 9.81 - 14.71 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft) 3.Remove the receiver-drier (A) from condenser using a long nose plier.
Hyundai Elantra (CN7) 2021-2025 Service Manual: Repair procedures
Inspection1.Check for resistance between terminals in each switch position (LH).[LH : Audio + Hands free] Switch Resistance (±5%) SEEK Up430 ΩSEEK Down1.11 kΩMODE2.11 kΩMUTE3.11 kΩVolume (+)4.
