Hyundai Elantra (CN7): Lighting System / Head Lamps
Repair procedures
| Head Lamp Aiming Instructions |
[Mechanical Aiming]
The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
| •
| If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements. |
|
Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows :
| 1. | Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools. |
| 2. | The vehicle should be placed on a flat floor. |
| 3. | Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen. |

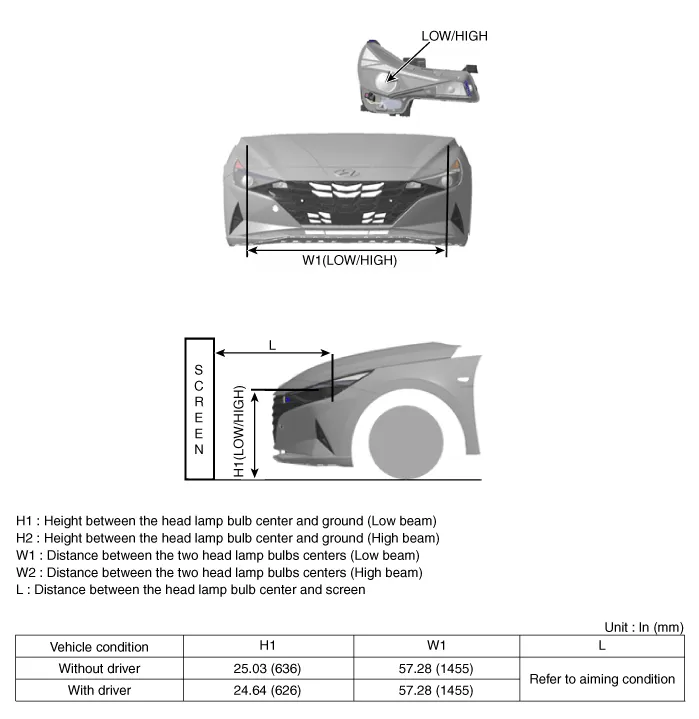

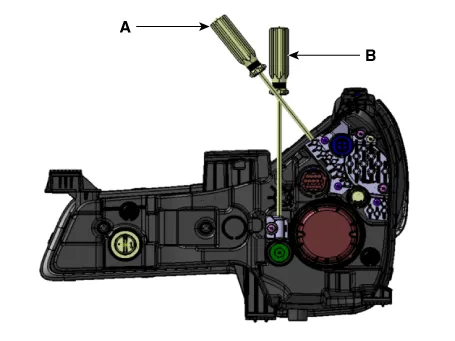

| 4. | With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines. | (1) | Head lamp (Halogen) A : Horizontal (High beam / Low beam) B : Vertical (High beam / Low beam)
|

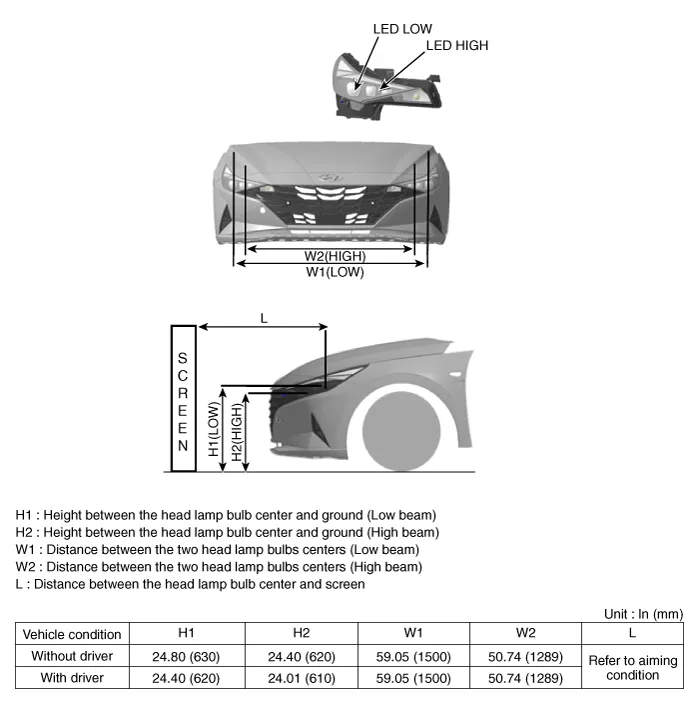

| (2) | Head lamp (LED) A : Horizontal (Low beam) B : Vertical (High beam / Low beam)
|
|
[Halogen Type]
[LED Type]
| 1. | Head Lamp (Low beam) | –

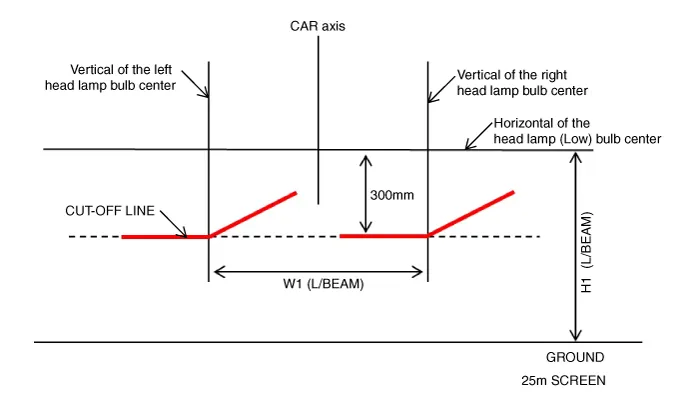

| With the low beam turned on, adjust the cut-off line to be located as shown in the picture below. |
| –
| If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions. |
|

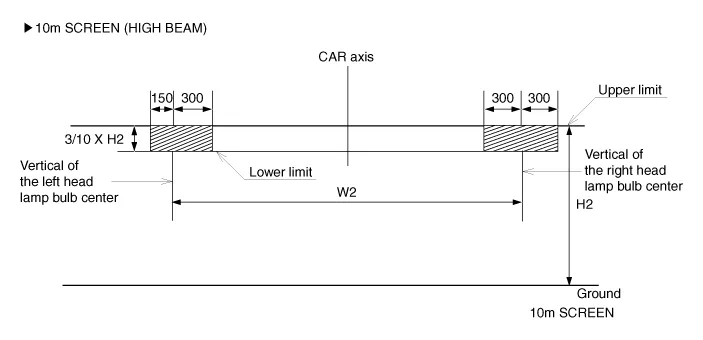

| 2. | Head Lamp (High beam) Turn the high beam on with driver seated in the vehicle. The hot zone should be projected in the allowable range shown in the picture.
|
Head Lamp Fogging

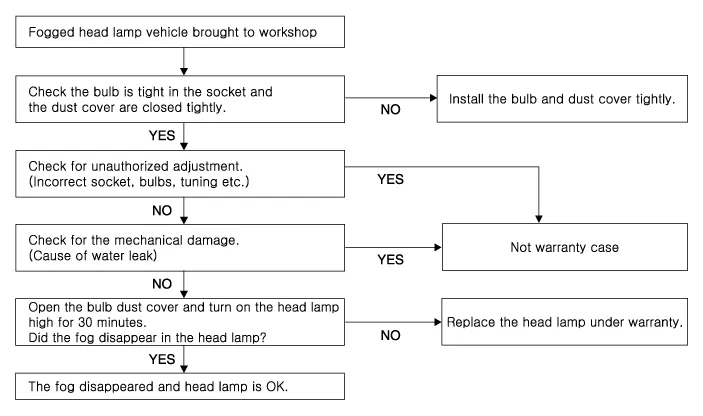

Check the below instruction procedure when the head lamp is fogged.
Head lamps
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") |

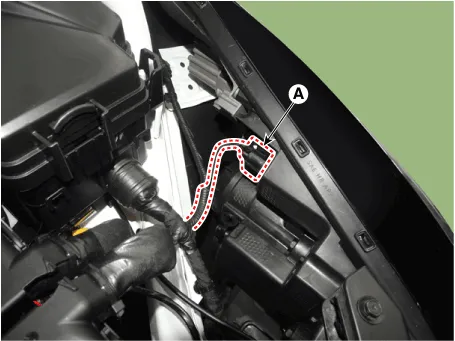

| 3. | Disconnect the head lamp connector (A).
|

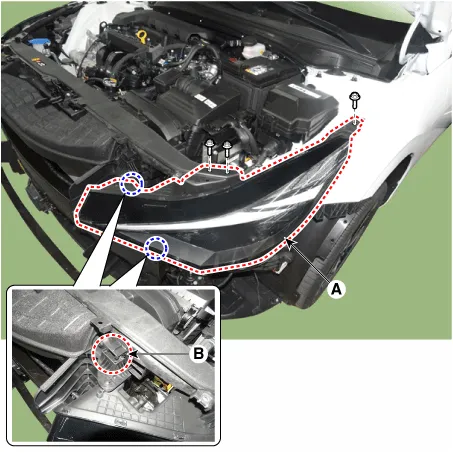

| 4. | Loosen the mounting bolts and remove the head lamp assembly (A). | •
| Take care that holding clip (B) is not to be damaged. |
|
|
LED Driver module

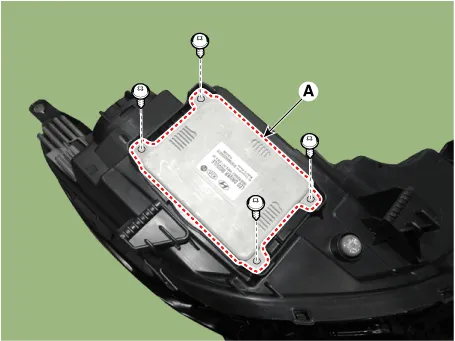

| 2. | Loosen the mounting screws and remove the LED Driver module (A).
|

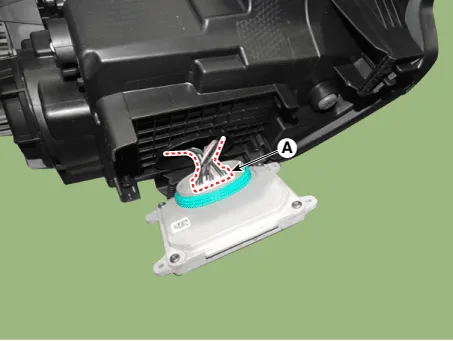

| 3. | Disconnect the LED Driver module connector (A).
|
Head lamps
| 1. | Install the head lamp assembly after connecting the connector. |
| 2. | Install the front bumper corver. |
| 3. | Connect the negative (-) battery terminal. |
LED Driver module
| 1. | Install the LED Driver module and connector. |
| 3. | Connect the negative (-) battery terminal. |
Head lamp bulb (Halogen type)

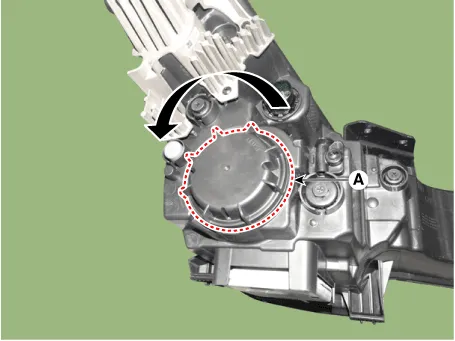

| 2. | Remove the dust cap (A) and replacement the bulb.
|
Moisture absorbent of the head lamp
| –
| After the testing of moisture, replace if necessary. Testing of moisture |
| •
| Start the engine , turn on the head lamp and open the dust cover. |
| •
| If there is moisture after 30 minutes, replace the moisture absorbent . |
|
| 2. | Remove the dust cap (A) and replacement the bulb.
|

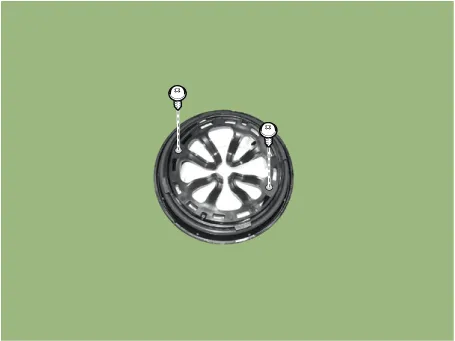

| 3. | Loosen the mounting screws and remove the moisture-absorbing agent.
|
| •
| Grasp the moisture absorbent and form a round shape. |
| •
| Do not insert the moisture absorbent folded.
|
| •
| Be careful to ensure that the moisture absorbent packaging is not damaged when fastening the screws. |
|
Specification
Item
Type
Bulb Watt (W)
FrontHead lampHalogenLow beam / High beam9005L+60DRL/Position lampLEDLEDLEDLow beamLEDLEDHigh beamLEDLEDDRL/Position lampLEDLEDTurn signal lampPY21W21Door mirror turn signal lamp LEDLEDRearRear combinationHalogenTail lampW5W5Tail / Stop lampP21/5W21 / 5Back up lampW 16W16Turn signal lampPY 21W21LEDTail / Stop lampLEDLEDBack up lampW 16W16Turn signal lampPY21W21Back up lampPY21W 21LEDLEDLicense plate lamp W5W5InteriorMap lampSunroof not appliedW10W10Sunroof appliedW1010Room lampFESTOON8Luggage lamp FESTOON5Vanity lamp FESTOON5
