Hyundai Elantra (CN7): Smart Key System / Smart Key

Repair procedures

Smart Key
Smart Key Code Saving
1.

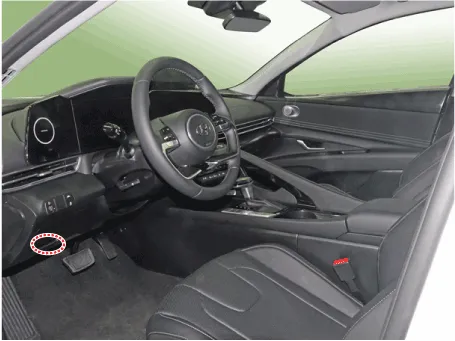

Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.

2.

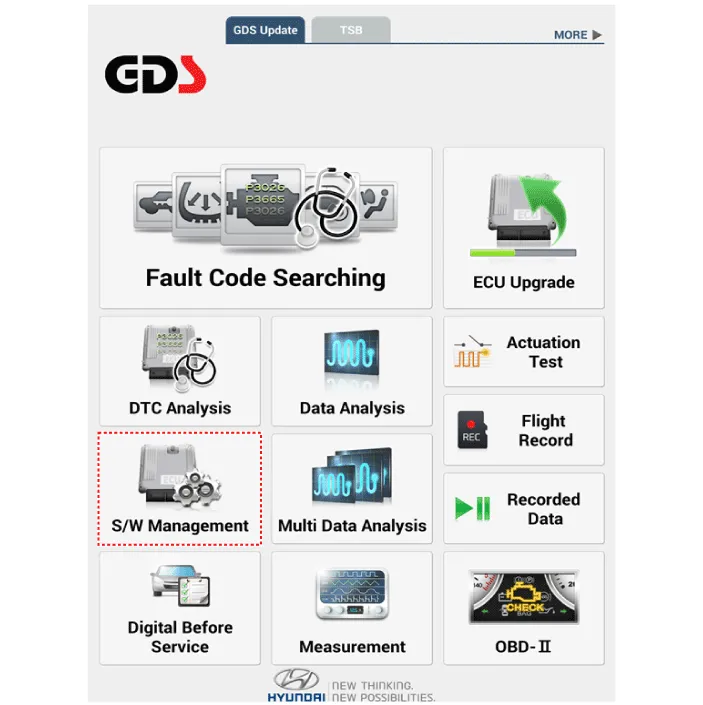

Select the 'S/W Management' and 'Car model'.

3.

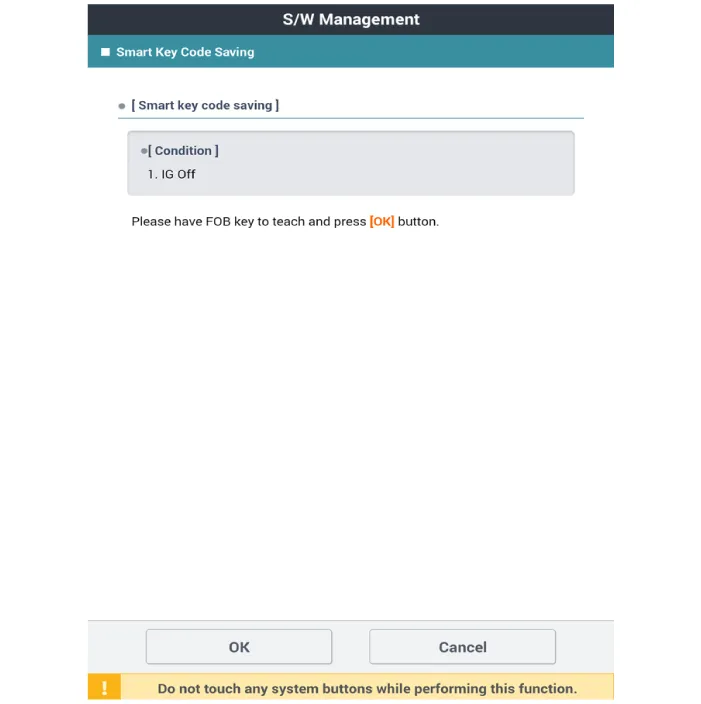

Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

4.
Follow the instructions on the screen.

    SpecificationsSmart Key Unit Items Specification Rated voltageDC 12VOperating voltageDC 9 - 16VOperating temperature-22°F to 167°F (-30°C to 75°C)LoadMax.

    Components and components location Components (1)Connector Pin InformDation Pin no Connector A Connector B Connector C Connector D Connector E 1ESCL (+)_output----2Front heated nozzle_output----3-Puddle pocket lamp_output-Mirror folding_output-4Front washer switch _Input---5-LIN(PDW)--ESCL enable_output6Ground_PowerR-PDW power_input--RPM_input7Ground_ECUR-PDW power_output--Start relay_output8ESCL (-)_outputF-PDW power_output--ACC relay_output9Battery (+) ECUATM solenoid_output-Auto light sensor ground_outputStart feedback_input10Battery (+) PowerHead lamp high beam switch_input-Rear view camera switch_inputSSB switch2_input11IGN_InputFront washer switch _Input-R-PDW switch_inputTrunk antenna (-)_output12Kiline_IMMOFront wiper INT volume switch_input-P-Position_inputInterior2 antenna power(-)_output13-Wiper parking switch_input-Passenger outside handle switch_input-14-External buzzer_output-Multifunction Switch ground _InputPassenger outside handle antenna (-)_output15-R-PDW switch IND_output-ACC_input-16---IGN2_input-17--Front wiper low back up switch_input-18--Brake switch_inputDriver outside handle antenna (-)_output19---Immobilizer antenna ground_output20----21----22LIN 3(Rain sensor)-PDW option_input-23Wiper power relay_outputMirror unfolding_output-24---25Wiper low relay_output--26Wiper high relay_output-Wheel speed sensor_input27--IGN2 relay_output28Fog lamp switch_input-IGN1 relay_output29Light switch_inputAuto light sensor power_outputSSB symbol illumination(+)_output30-Auto light sensor signal_inputSSB switch1_input31-Sunroof status_inputTrunk antenna (+)_output32-ESCL unlock switch_inputInterior2 antenna power(+)_output33ESCL_COMClutch lock switch_input (MT)-34EMS ECU wake up_output/Dood unlock signal_outputDriver outside handle switch_inputPassenger outside handle antenna (+)_output 35-B-CAN High-36-B-CAN Low-37P-CAN High-38P-CAN LowDriver outside handle antenna (+)_output39-Immobilizer antenna power_output40-- Schematic diagrams Circuit Diagram Repair procedures RemovalSmart Key Unit (IBU)1.
