Hyundai Elantra (CN7): Tire Pressure Monitoring System / Troubleshooting

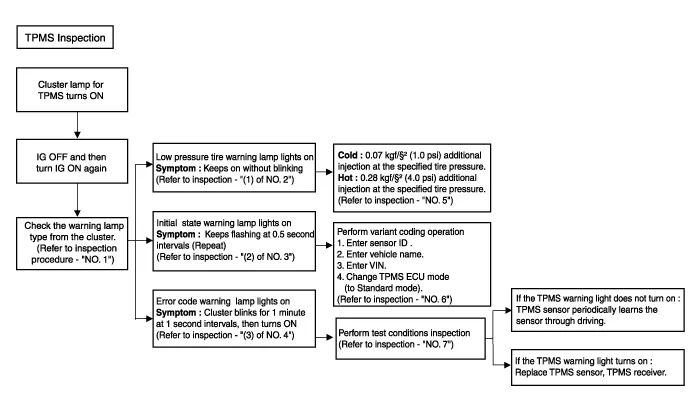

| TPMS Inspection method |
Components1. Integrated Body Control Unit (IBU)2. TPMS sensor (FL)3. TPMS sensor (RL)4. TPMS sensor (RR)5. TPMS sensor (FR)
Description and operation Description 1.Function• By detecting the pressure, temperature, acceleration, and battery condition, transmit information to ECU by a wireless RF.
Other information:
Hyundai Elantra (CN7) 2021-2026 Service Manual: Description and operating principle
Description and OperationWireless Power Charger SystemDuring ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone. Mobile phones certified with the wireless charging standard WPC (Qi 1.
Hyundai Elantra (CN7) 2021-2026 Service Manual: Troubleshooting
TroubleshootingWireless Power Charger System Troubleshooting Trouble status Inspection item Inspection Not chargedCheck the mobile phone status R-1Amber LED blinks OvercurrentR-2OverheatingR-2Foreign matterR-2R-1.
