Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location
| Component Location |
[General type]
| 1. Rear bumper assembly 2. Rear bumper under cover [LH] | 3. Rear bumper under cover [RH] 4. Rear bumper side bracket |

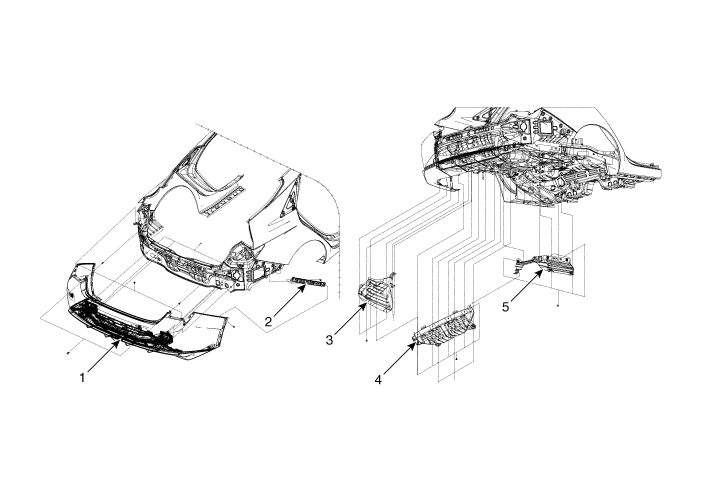

[N Line]
| 1. Rear bumper assembly 2. Rear bumper side bracket 3. Rear bumper under cover [LH] | 4. Rear bumper under cover [CTR] 5. Rear bumper under cover [RH] |
Rear Bumper
..
Rear Bumper Assembly
Components and components location
Component Location1. Rear bumper assembly
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
