Hyundai Elantra: Cooling System / Coolant Reservoir Tank

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Mechanical System / Cooling System / Coolant Reservoir Tank

Repair procedures

Removal and Installation

1.	Drain the coolant. (Refer to Cooling System - "Coolant")

2.	Disconnect the degassing hose (A) and coolant reservoir tank hose (B).

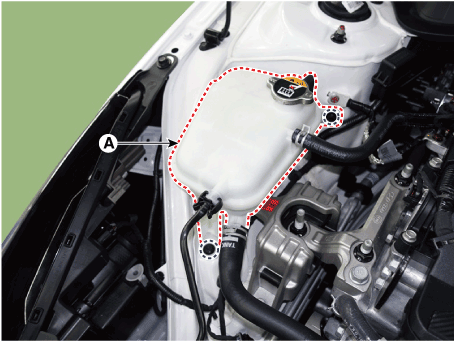

Remove the coolant reservoir tank (A).

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.	Install in the reverse order of removal.

Fill with engine coolant.

(Refer to Cooling System - "Coolant")

•	The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
