Hyundai Elantra: Front Door / Front Door Belt Inside Weatherstrip

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

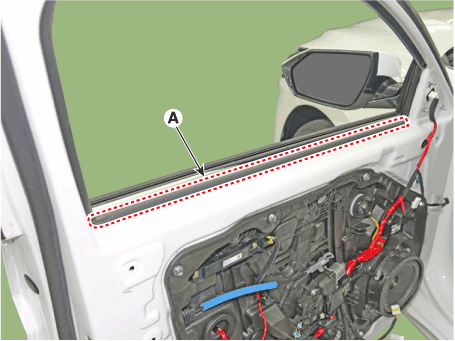

2.	Remove the front door belt inside weatherstrip (A).

To install, reverse the removal procedure.

•	When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.

Front Door Belt Outside Weatherstrip

Repair procedures Replacement1.Remove the outside rear view mirror.(Refer to Mirror - "Outside Rear View Mirror")2.Pull down the front door window glass to the lowest level by pressing the power window glass switch...

Front Door Side Weatherstrip

Repair procedures Replacement[Front door side weatherstrip]1.Loosen the front door checker (B) mounting bolt. Tightening torque : 18...
