Hyundai Elantra: Front Door / Front Door Belt Outside Weatherstrip
Repair procedures
1. | Remove the outside rear view mirror. (Refer to Mirror - "Outside Rear View Mirror") |
2. | Pull down the front door window glass to the lowest level by pressing the power window glass switch. |

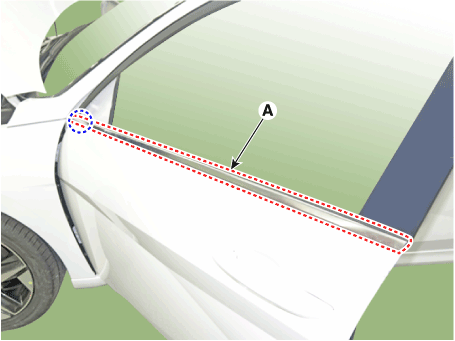

3. | After loosening the mounting screws, remove the front door belt outside weatherstrip (A). |
4. | To install, reverse the removal procedure. |
•
| Replace any damaged clips (or pin - type retainers). |
|
