Hyundai Elantra: Driving Safety / Intelligent Speed Limit Assist (ISLA)
Intelligent Speed Limit Assist uses information from the detected road sign and navigation system to inform the driver of the speed limit and additional information of the current road. Also, the function helps the driver to maintain within the speed limit of the road.
CAUTION
Intelligent Speed Limit Assist may not operate properly if the system is used in other countries.
Detecting sensor
.png)

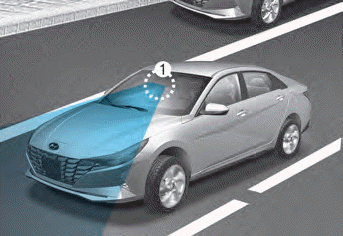

[1]: Front view camera
Refer to the picture above for the detailed location of the detecting sensor.
CAUTION
For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
Information
If the navigation system is available, the information from the navigation system is used along with the road sign information detected by the front view camera.
System operation
To set speed limit
1. Press and hold Driving Assist
() button at the desired
speed. The Manual Speed Limit
Assist enabled () indicator will
illuminate on the cluster...
Function settings
Setting
Speed Limit
With the engine on, select or deselect
‘Driver Assistance → Speed Limit’ from
the Settings menu to set whether or not
to use each function...
