Hyundai Elantra: Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

Schematic diagrams

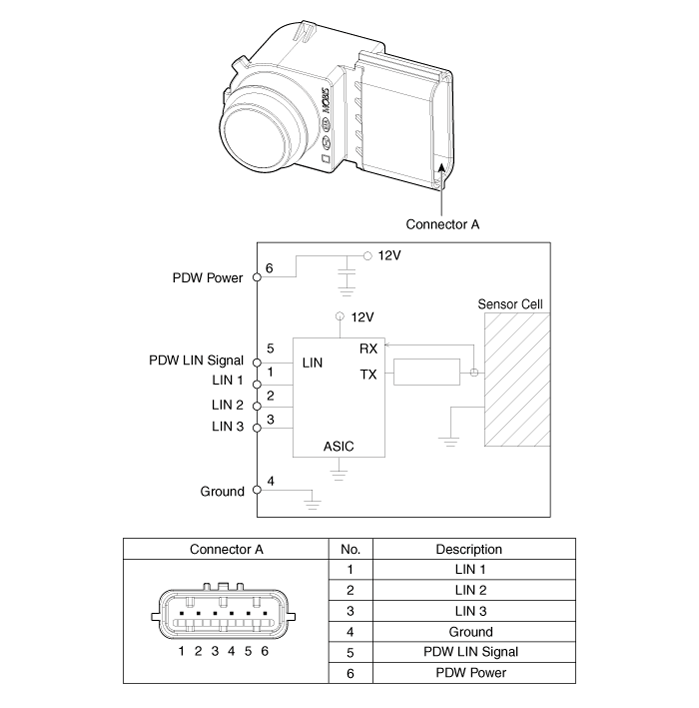

Circuit Diagram

Repair procedures

Removal

1.	Remove the bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover")

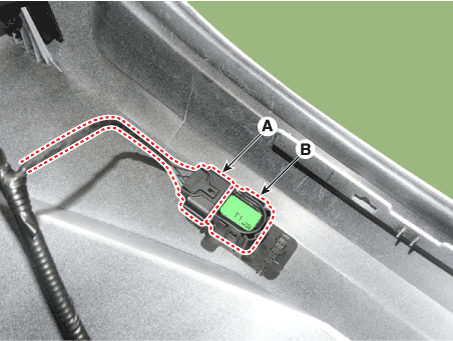

2.	Disconnect the ultrasonic sensor connector (A) and remove the ultrasonic sensor (B).

Installation

1.	Install the ultrasonic sensor.

2.	Install the bumper cover.

Specifications

Specifications Item Specification Ultrasonic sensorVoltage ratingDC 12 VDetecting range11.8 - 47.2 in...
