Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat outer shield cover. (Refer to Body - "Front Seat Outer Shield Cover")

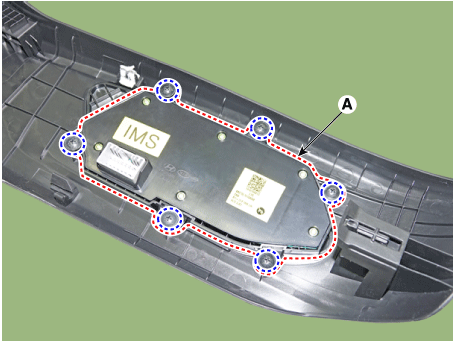

3.	Remove the power seat control switch (A) after loosening the screws.

Installation

1.	Install the power seat control switch after connecting the connector.

2.	Install the front seat outer shield cover.

3.	Connect the negative (-) battery terminal.
