Hyundai Elantra: Cylinder Block / Rear Oil Seal

Components and components location

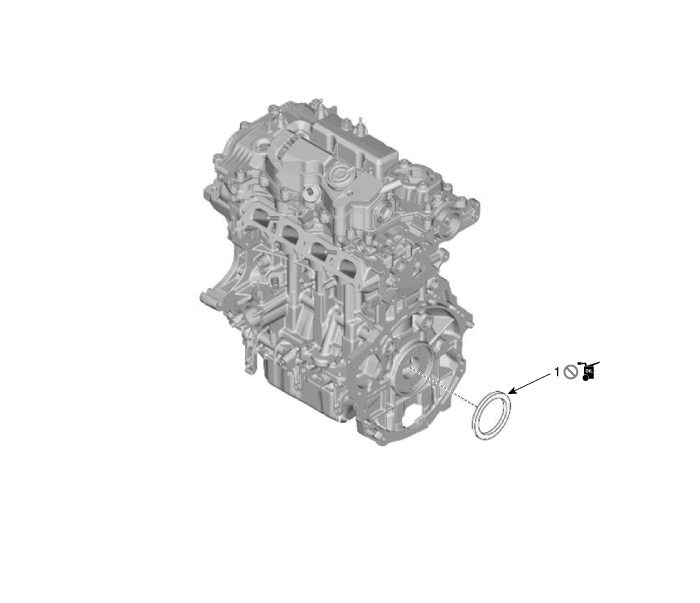

Components

1. Rear oil seal


Repair procedures
Replacement
1.
Remove the drive plate.
(Refer to Cylinder Block - "Drive Plate")
2.

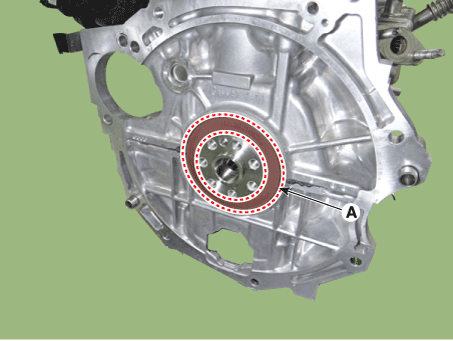

Remove the rear oil seal (A).

3.
Apply engine oil on the edge of new rear oil seal.
4.

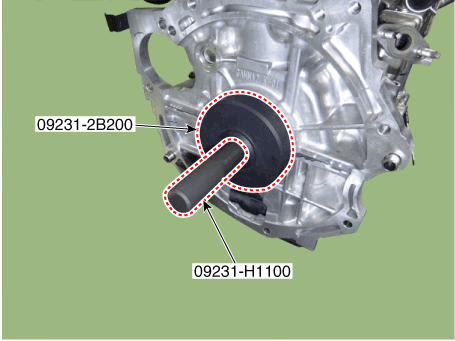

Using SSTs (09231-H1100, 09231-2B200), install the new rear oil seal.
When assembling, the surface of the oil seal shall coincide with the surface of the cylinder block.


Always use a new rear oil seal.
5.
Install the other parts in the reverse order of removal.
