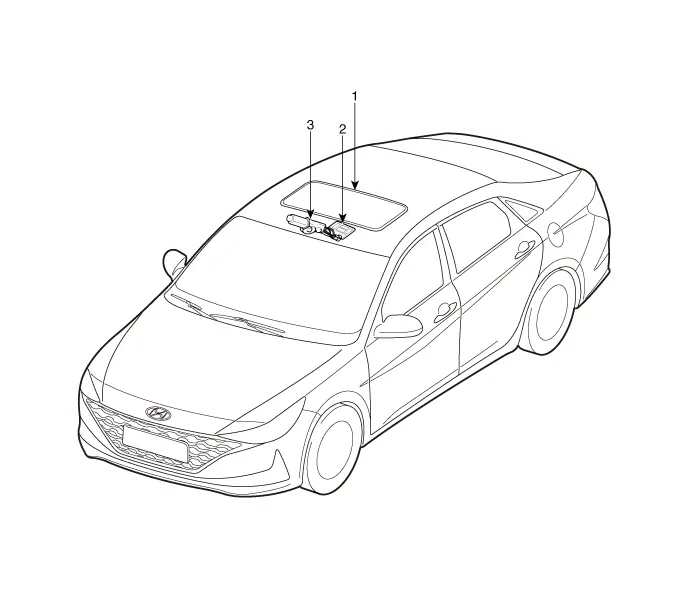

| Component Location |

| 1. Sunroof 2. Sunroof switch | 3. Sunroof motor & controller |

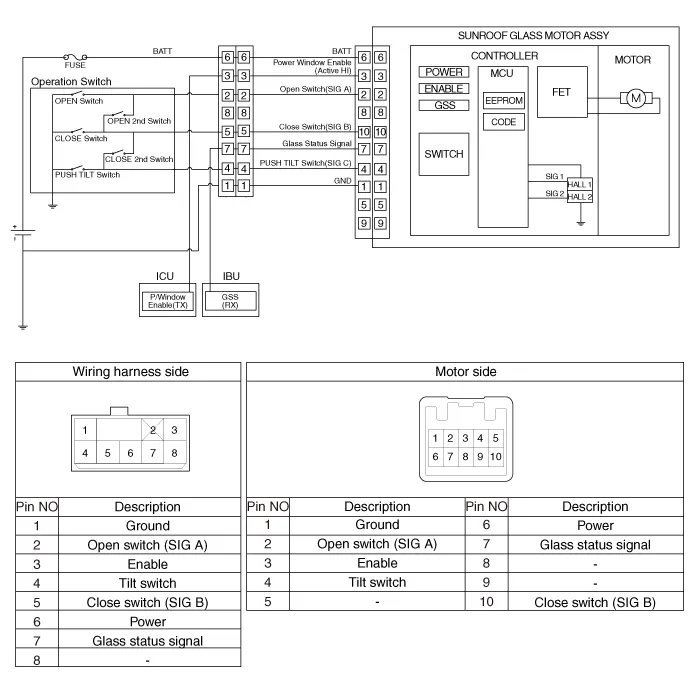

| Circuit Diagram |

| Inspection |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Using a remover and remove the overhead console (A).
|
| 3. | Check for continuity between the terminals.
|
| Inspection |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the roof trim. (Refer to Body - "Roof Trim") |
| 3. | Disconnect the sunroof motor (A) connector.
|
| 4. | Ground the terminals as below table, and check that the sunroof unit operates.
|
| 5. | Make these input tests at the connector. If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the sunroof motor must be faulty; replace it.
|
| Resetting the Sunroof |
| 1. | Turn the ignition key to the ON position and then close the sunroof completely. |
| 2. | Release the sunroof control lever. |
| 3. | Press and hold the CLOSE button for more than 10 seconds until the sunroof closed and it has moved slightly. |
| 4. | Release the sunroof control lever. |
| 5. | Press and hold the CLOSE button once again within 5 seconds until the sunroof do as follows;
|
| 6. | Reset procedure of panorama system is finished. |
| 1. | The sunroof ECU detects the Run- time of motor |
| 2. | Motor can be operated continuously for the 1st run-time (120 ± 10sec.). |
| 3. | The continuous operation of motor stops after the 1st Run-time (120 ± 10sec.). |
| 4. | Then Motor is not operated for the 1st Cool-time (18 ± 2sec.). |
| 5. | Motor is operated for the 2nd Run-time (10 ± 2sec.) at the continued motor operation after 1st Cool-time (18 ± 2sec.) |
| 6. | The continuous operation of motor stops operating after the 2nd Run-time (10 ± 2sec.) |
| 7. | Motor is not operated for the 2nd Cool-time (18 ± 2sec.). |
| 8. | Motor repeats the 2nd run-time and 2nd cool-time at the continued motor operation.
T1 : 120 ± 10 sec., T2 : 18 ± 2 sec., T3 : 10 ± 2 sec., T4 : 18 ± 2 sec. |
