Hyundai Elantra: Sun Roof / Sunroof Switch

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Sun Roof / Sunroof Switch

Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.

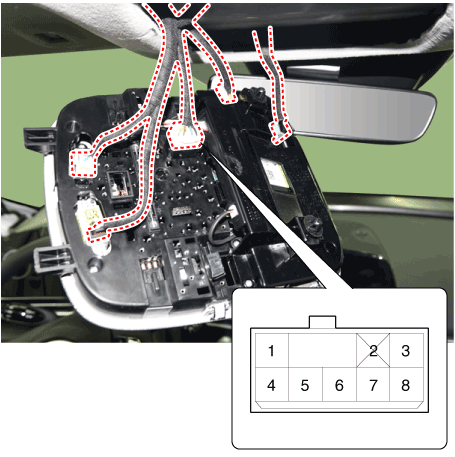

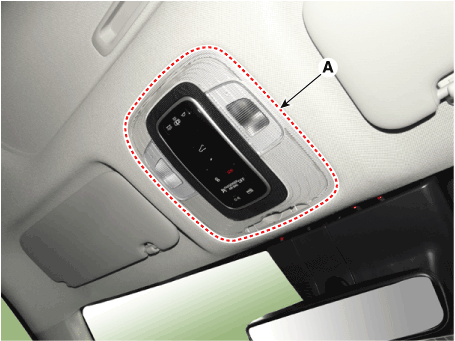

Using a remover and remove the overhead console (A).

3.

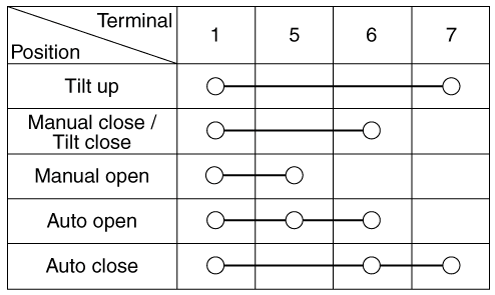

Check for continuity between the terminals.

    Schematic diagrams

    C..
