Hyundai Elantra (CN7): Lighting System / Hazard Lamp Switch
Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the crash pad airvent [RH]. (Refer to Body - "Crash Pad Airvent") |

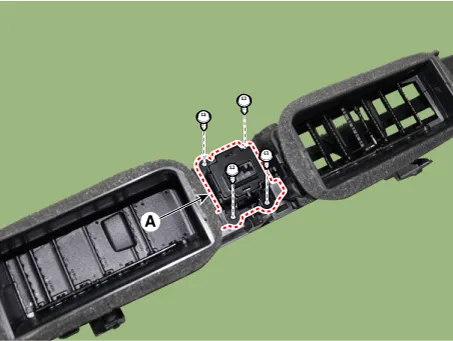

| 3. | Loosen the mounting screws and remove the harzard lamp switch (A).
|
| Installation |
| 1. | To install, reverse the removal procedure. |
